- Magneto-electric equipment with rectifier
+ 11 DC ranges: 100 μA to 10 A
+ 100 mV DC calibre for shunts
+ 7 AC ranges: 10 mA to 10 A
- Accuracy
± 2 % for DC
± 2.5 % for 10 A DC range
± 2.5 % for AC
± 3.5 % for 10 A AC range
- Frequency response
+ Reference range: 45 Hz to 65 Hz
+ Operating range: 45 Hz to 400 Hz
- Dial
+ 2 black DC scales (0 to 100 and 0 to 30)
+ 2 red AC scales (0 to 100 and 0 to 30)
- Fuses: 1 A HRC and 10 A HRC
- Dimensions and weight: 165 x 105 x 50 mm – 450 g
- Electrical safety: 600 V CAT III as per IEC/EN 61010-1 Edition 2
Accessories:
- Shockproof sheath P01298016
-Spare fuses (set of 10) 1 A HRC 380 V 50 kA fuse P03297507
+10 A HRC 380 V 50 kA fuse P03297510
+315 mA HRC 380 V 50 kA fuse P03297509
+1.25 A HRC 380 V 50 kA fuse P01297015
+6.3 A HRC 380 V 100 kA fuse P01297016
+3.15 A HRC 380 V 50 kA fuse P01100726
+160 mA 380 V 50 kA fuse P03297508

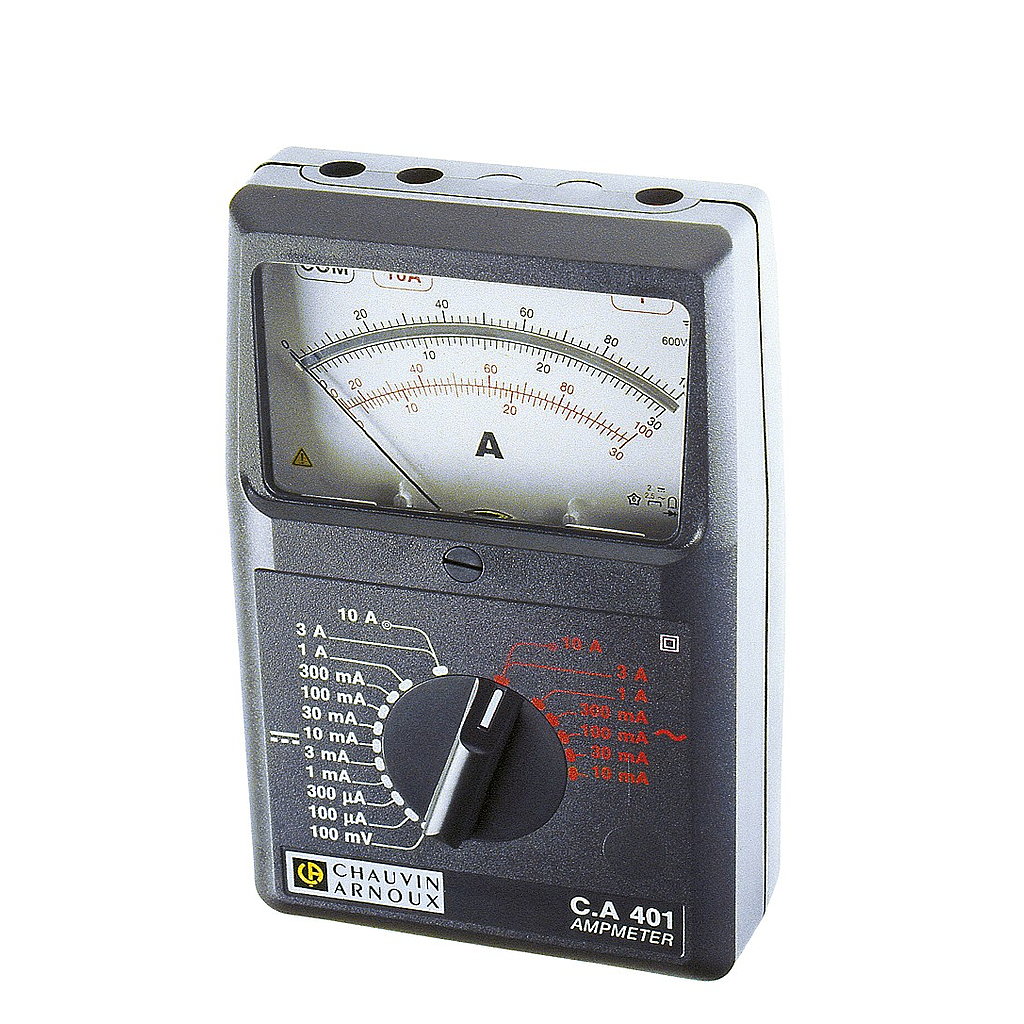

From the CA 400 series of testers for teaching purposes, the C.A 401 analogue AC/DC tester is a sturdy, simple tool which is extremely safe to use. Perfectly suitable for teaching purposes and laboratory requirements, the C.A 401 combines accuracy and reliability with extensive electronic and mechanical safety.
