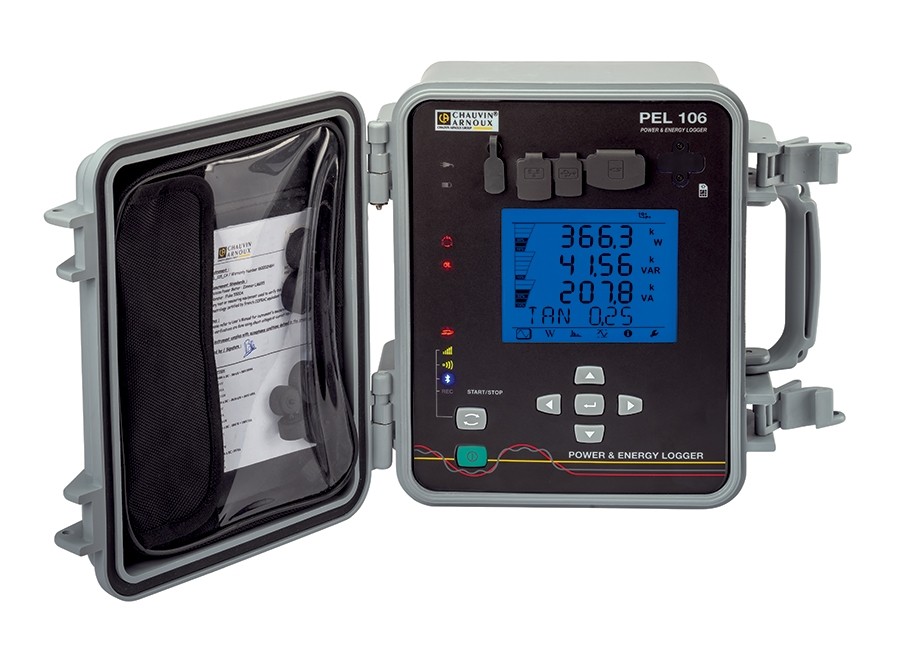

Chauvin Arnoux PEL 106 POWER-ENERGY LOGGER (1,000 Vac/dc, 1.4 kAdc, 4CH, Free PEL app including Motor measurement)

Measurements

Network frequency: DC, 50 Hz, 60 Hz and 400 Hz

Voltage (measurement ranges / best accuracy: 10.00 -1,000 Vac/dc

Current (depending on sensors): 5 mAac to 10 kAac / 50 mAdc to 1.4 kAdc

Calculated measurements

Ratio: Up to 650,000 V / up to 25,000 A

Power: 10 W to 10 GW / 10 var to 10 Gvar / 10 VA to 10 GVA

Energy: Up to 4 EWh / 4 EVAh / 4 Evarh (E = 1018)

Phase: cos φ, tan Φ, PF

Harmonics: THD

Mechanical specifications

Dimension: 245 x 270 180 mmwithout sensor

Weight: <3400 g

State of delivery

1 bag for the accessories, 5 x IP67 voltage cables, 5 lockable crocodile clips, 1

set of rings/inserts, PC software (PEL Transfer), 1 SD card, 1 SD -USB adapter,

1 USB cable, 1 user’s manual in multiple languages, 1 quick start guide.

Datasheet
