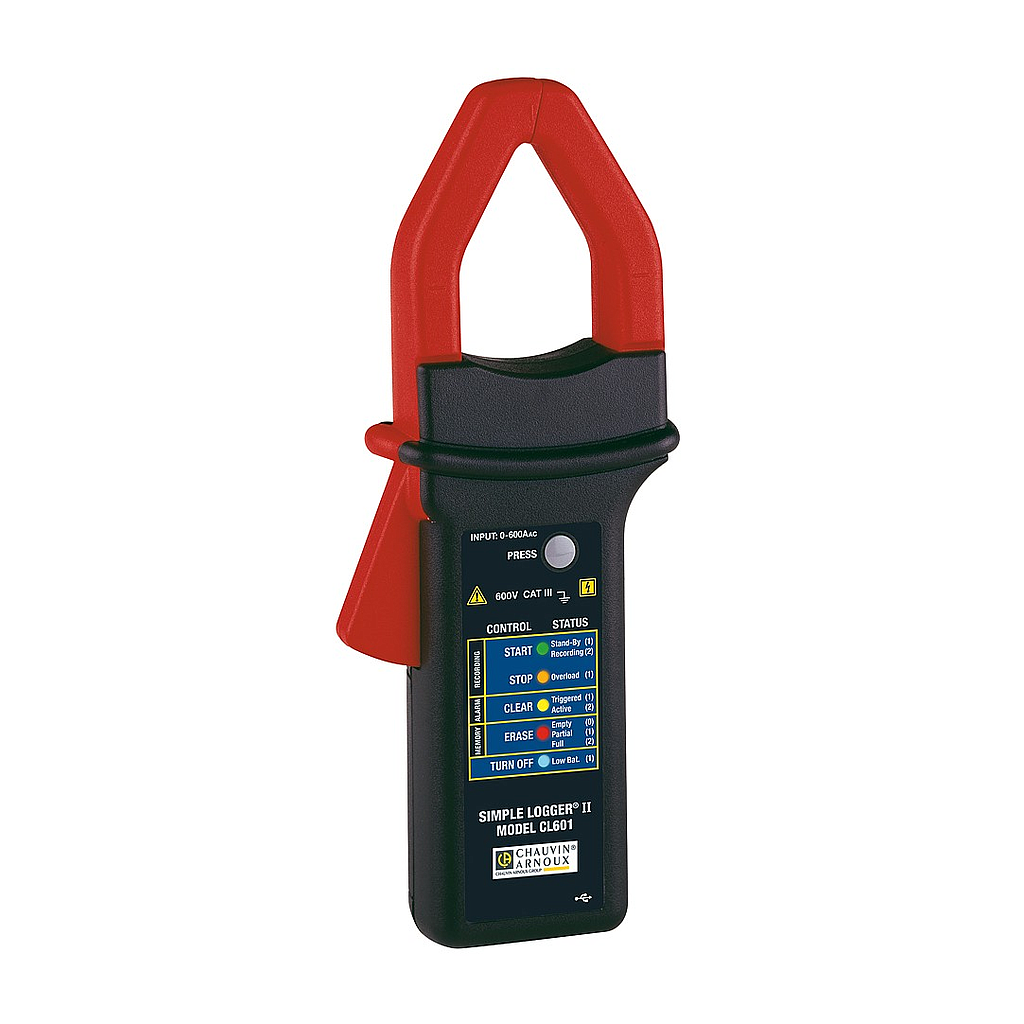

Electrical Specification
- Channels: 1
- Input connection: Split CT – AC Current
- Range de courant: 0 to 600AAc
- Resolution: 0.1 A
- Accuracy (50/60 Hz) 0 to 5 A: unspecified 5 to 50 A: ±(1 % R + 1 A) 50 to 400 A: ±(1 % R + 0.5 A) 400 to 600 A: ±(3 % R + 1 A)
- Sample rate: 64 samples/cycle
- Storage rate: Programmable from 125 ms to 1 day
- Storage modes: Start/Stop, FIFO and Extended Recording Mode (XRM™)
- Recording length: 15 minutes to 8 weeks, programmable using DataView®
- Memory: 240,000 measurement (512 kB). The recorded data is stored in non-volatile memory & retained even if the battery is low or removed
- Communication: USB 2.0 optically isolated
- Power source: 2 x 1.5 V AA-cell alkaline batteries
- Battery life: 100 hours to > 45 days (depending on storage rate/recording length)
Mechanical Specification
- Dimensions: 235 x 102 x 41 mm (9.25 x 4.0 x 1.63")
- Max conductor size: 1 conductor Ø 42 mm (1.65"), 2 conductors Ø 25.4mm (1.00") each
- Weight (with battery): 485 g (17.1 oz)
- Safety rating: IEC 61010, 300 V CAT IV / 600 V CAT III
- Casing: UL94-V0
- Vibration: IEC 60068-2-6 (1.5 mm, 10 to 55 Hz)
- Shock: IEC 60068-2-27 (30G)
- Drop: IEC 60068-2-32 (1 m)
Environment Specification
- Operating temperature: -10 to +50 °C
- Storage temperature: -20 to +60 °C
State at delivery: type A to 5-pin mini-B USB 2 m, DataView® CD, two 1.5 V AA-cell alkaline batteries and user manual.
