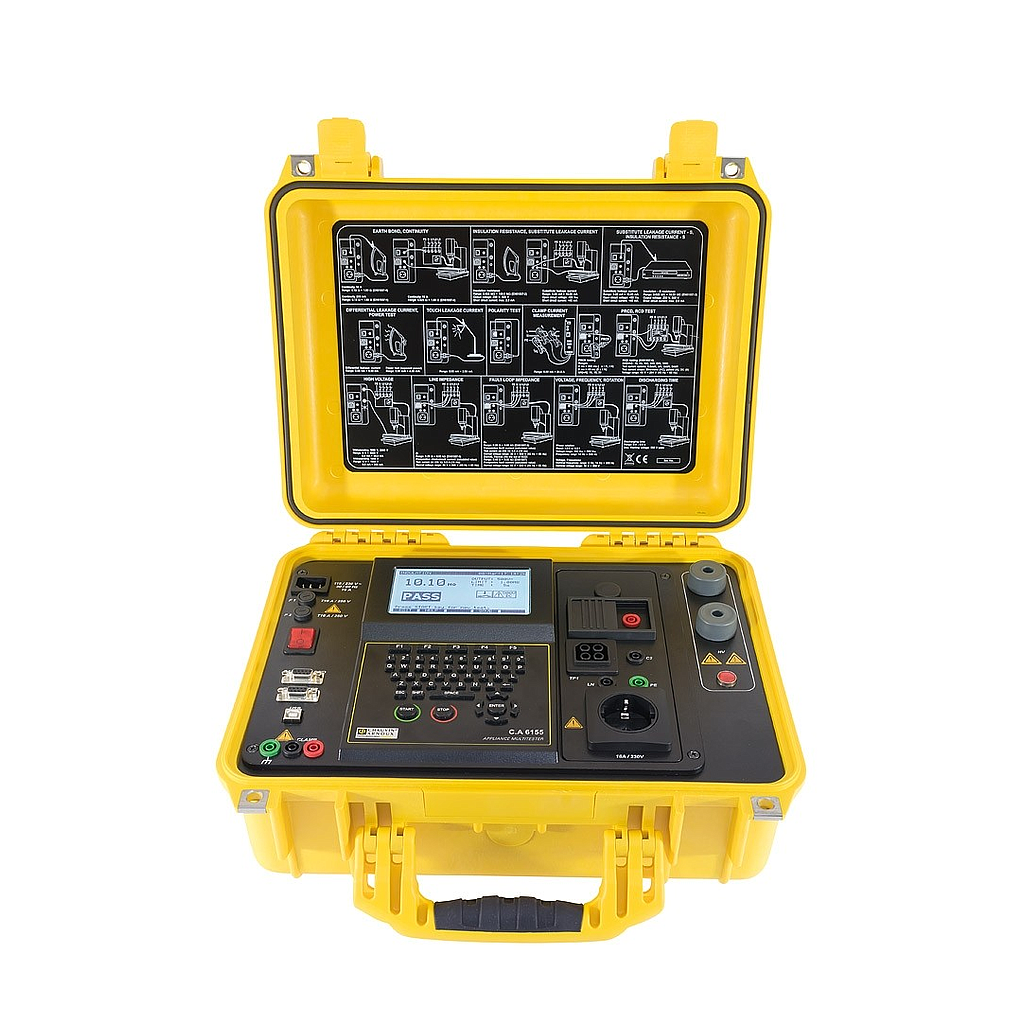

Chauvin Arnoux C.A 6155 Multi-function equipment tester

- Dielectric testing
+Test voltage : 1,000 V / 1,890 V / 2,200 V
+I limit : 0.1 to 100 mA (1,890 V / 2,200 V) ; 0.1 to 200 mA (1,000 V)
+Imax of HV/Power source : 200 VA
+Timer : 2, 3, 5, 10, 30, 60 s
- Insulation resistance measurement
+Utest : 250 / 500 VDC
+Range: Up to 200 MΩ
+Timer: 5, 10, 30, 60, 120 s
- Continuity testing
+Range : 0.01 to 1.99 Ω
+I test : 0.20 / 10 A
+U test : < 9 V
+Timer : 5, 10, 30, 60, 120, 180 s
- Leakage current measurement
+Substitution method : 0.00 to 19.99 mA
+Differential method : 0.00 to 9.99 mA
+Accuracy : ± (5 % of reading + 5 cts)
- Contact leakage current measurement
+Measurement range : 0,00-2,50 mA
+Accuracy : ± (10% of reading + 5 cts)
+Timer: 2, 3, 5, 10, 30, 60, 120 s
- 60 V discharge time measurement
+Voltage range (peak value) : 0 to 550 V
+Time range : 1 s, 5 s
- Functional test
+Apparent power : 0.00 to 4.00 kVA
+Power-cable polarity test: YES
- Current measurement with clamp: 0.00 mA to 24.9 A
- PRCD testing
+Calibre : 10, 15, 30 mA
+Test current : 0.5xI∆n, I∆n, 5xI∆n
+Other : Automatic PRCD test
- RCD testing
+Calibre : 10, 30, 100, 300, 500, 1000 mA
+Test current : 0.5xIΔn, IΔn, 2xIΔn, 5xIΔn
+Current type : AC / A / B
+RCD type : General / Selective
+Test type : Step / Pulse
+Uc contact voltage measurement : YES
+Other : Automatic RCD test
- High-current Zs loop measurement
+Test current : 6.5 A
+Range : 0.00 to 1,999 Ω
+Accuracy: ± (5 % of reading + 5 digits)
+Ik calculation : 0.00 to 23.0 kA
- Zs loop measurement (without RCD tripping)
+Range : 0.00 to 1,999 Ω
+Accuracy : ± (5 % of reading + 10 digits)
+Ik calculation : 0.00 to 23.0 kA
- Zi loop measurement
+Test current : 6.5 A
+Range : 0.00 to 1,999 Ω
+Accuracy : ± (5 % of reading + 5 digits)
+Ik calculation : 0.00 to 199 kA
- Voltage / frequency : 0 to 550 V / 14.0 to 499.9 Hz
- Phase rotation
+Voltage : 100 to 550 VAC
+Frequency : 14 to 500 Hz
OTHER SPECIFICATIONS
- RS 232: 1 connection for barcode / RFID reader + 1 connection for printer / PC
- USB/B: 1 printer / PC connection
- Alarms : Yes for all functions
- Storage: 6,000 memory locations
- Software: Yes, delivered as standard
- POWER SUPPLY: 115 V - 230 V / 50-60 Hz
- FUNCTIONAL STANDARDS: VDE 701 702 / IEC 60204 / IEC 61439
- STANDARDS: IEC 61010-1 / IEC 61557 (parts 1, 2, 3, 4, 6, 7)
- ELECTRICAL SAFETY: Cat II / 300 V
- DIMENSIONS / WEIGHT: 33.5 cm × 16.0 cm × 33.5 cm - 8.4 kg


State at delivery:
-2 high-voltage test cables (2 m)
-1 high-voltage test probe (red)
-1 high-voltage crocodile clip (red)
-1 plug-in test cable 1.5 m long
-1 test cable with three separate leads 3 m long
-1 test lead (green, 1.5 m)
-1 test lead (black, 1.5 m)
-1 test lead (red, 1.5 m)
-1 test lead (red, 4 m)
-1 test probe (blue)
-1 test probe (green)
-1 test probe (black)
-1 test probe (red)
-3 crocodile clips (black)
-PC software on CD-ROM with RS232 and USB cable
-1 multilingual user’s manual on CD-ROM
-1 multilingual safety datasheet
-1 specimen measurement report
