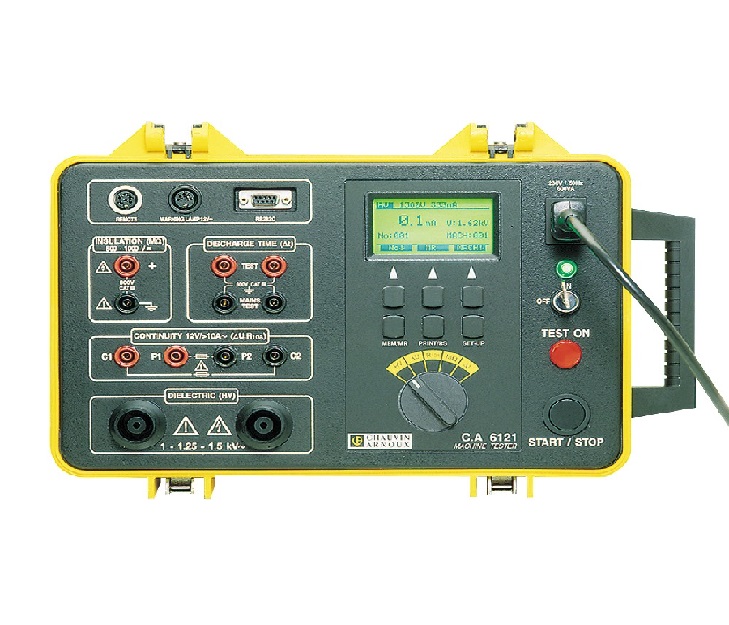

Chauvin Arnoux C.A 6121 Machine tester (0~2.00 kV, 200~500 mA, 2.00~19.99 MΩ)

DIELECTRIC

Nominal test voltage (50 Hz)*: 1000 V~1500V

Test voltage:

Range: 0...2.00 kV

Test current:

Range: 0...199.9 mA/ 200...500 mA

INSULATION RESISTANCE

Range: * 0...1.999 MΩ 2.00...19.99 MΩ

Mains voltage : 230 V / 50 Hz

Working humidity : 85% RH max (0...+40°C)

Dimensions (W x D x H) : 400 x 260 x 250 mm

Weight : 11 kg

Instruments supplied with :

1 mains lead, 3-core,

1 set of 2 keys to lock the instrument,

2 high voltage guns (2 m cable),

1 discharge cable,

2 continuity leads 2.5 m, with double

contact crocodile clips,

2 safety leads 3 m (red/ black),

2 crocodile clips (red/ black),

1 test prod (red), 1 carrying bag

for the accessories and the user manual
