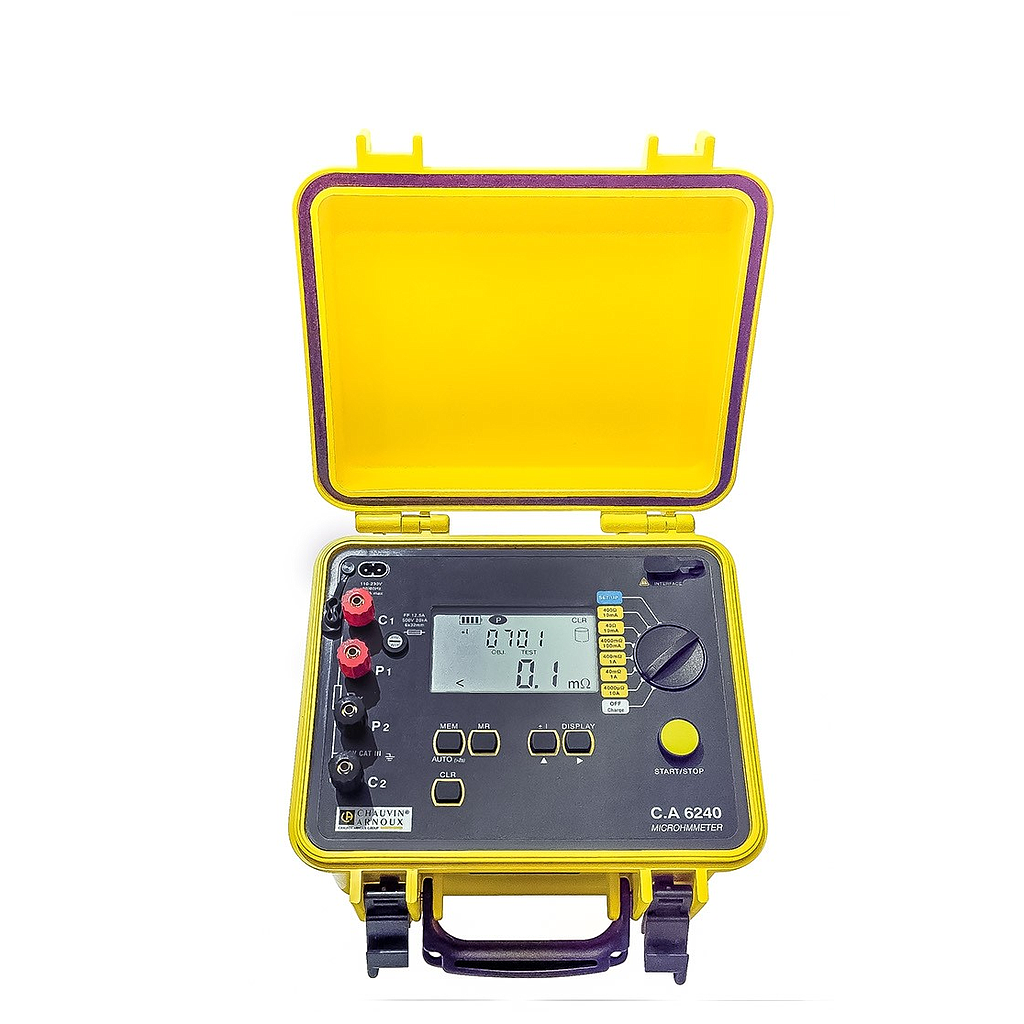

Chauvin Arnoux C.A 6240 Micro-ohmmeters (5 µΩ~400 Ω, 10A)

- 4-wire measurement method

- measurement ranges from 5 µΩ to 400 Ω

- Test current up to 10 A

- Max. resolution 1 µΩ

- Automatic power off

- Power supply: NiMH rechargeable battery

- Storage: 100 measurements

- Communication via USB optical link

- Data export software

- IP53 protection

- Electrical safety: IEC 61010-1 CAT III 50 V

- Dimensions: 273 x 247 x 280 mm

- Weight: 5 kg

Delivered with a carrying bag containing the following accessories:

– 1 EURO power lead 2m long

– 1 set of 2 x 10 A Kelvin clamps with a 3m cable

– 1 optical / USB communication cable

– 1 "Microhmview" software

– 1 simplified operating manual in 5 languages

– 1 operating manual in 5 languages

Datasheet

Manual
