- Application: Industrial Maintenance
- Voltage:
+ Measurement range / Resolution: 0.3V - 399.9 V / 0.1 V; 400V-700V / 1V
+ Accuracy / Input impedance: +/- (3% + 2cts) / 400 kO
+ Operating frequency :DC; 15.3 - 800 Hz
- Frequency
+ Measurement range / Resolution / Accuracy: 15.3 Hz- 399.9 Hz / 0.1 Hz / +/- (0.5% + 2cts) ; 400-800 Hz / 1 Hz / +/- (1% +1ct)
- Insulation
+ Test voltage: 250-500-1,000V
+ Range at maximum test voltage: 40 GO
+ Compliance with IEC 61557-2 standard : 2 GO
+ Measurement range: 50 V (10 kΩ - 10 GΩ); 100 V (20 kΩ - 20 GΩ); 250V (50 kΩ- 50 GΩ); 500 V(100 kΩ - 100 GΩ); 1000 V (200 kΩ - 200 GΩ)
+ Measurement range / resolution: 10-999 kOand 1,000-3,999 MO / 1 kO ; 4,00 - 39,99 MO/ 10 kO; 40,0-399,9 MO/ 100 kO ; 400 - 3999 MO / 1 MO; 4,00 - 39,99 GO / 10 MO ; 40,0 - 200 GO/ 100 MO
+ Accuracy: ± (3 % + 2 cts)
+ Test voltage (I < 1 mA): -0 % + 20 %
+ Display of test voltage: ± (3 % + 3 cts)
+ Display of test current / resolution: 0,01 μA - 39,99 μA / 10 nA ; 40,0-399,9 μA / 100 nA ; 0,400-2,000 mA/ 1 μA
+ Accuracy of test current: ± (10 % + 3 cts)
+ PI/DAR ratios: 10 mn / 1 mn - 1 mn / 30 s
+ Timer (min:s); 0:00 - 39:59
+ Discharge time (at 25 V): < 2 s/µF
+ Alarms: 2 fixed thresholds + 1 programmable threshold
- Continuity
+ Range for continuity measurement: 0 O-10 O(200 mA)
+ Accuracy / Open-circuit voltage: ± (2 % + 2 cts) / =6 V
+ Measurement current: -0%+4%
+ Continuity thresholds (quick beep): 2 Ofixed
+ Compensation of cables: up to 9,99 O
- Resistance
+ Measurement range / Resolution / Accuracy: 0-3999 Ω/ 1 Ω; 4,00 kΩ- 39,99 kΩ / 10 Ω/ ± (3 % + 2 cts)40,0 kΩ- 399,9 kΩ/ 100 Ω; 400 kΩ-1 000 kΩ / 1 kΩ / ± (3 % + 2 cts)
- Capacitance
+ Measurement range / resolution: 0,1 nF-399,9 nF / 0,1 nF; 400 nF-3999 nF / 1 nF;4,00 μF-10,0 μF / 10 nF
+ Accuracy: ± (3 % + 2 cts)
- General specifications
+ Display: 2 x 4,000 cts + logarithmic bargraph
+ Storage: 1,300 measurements
+ Communication: Bluetooth® Classe II
+ Power supply / Automatic shutdown: 6 x LR6(AA) batteries / 5 min , deactivatable
+ Battery life 1,500/2,500/6,000 measurements: UN x 1 kO@ UN (5s ON / 55 s OFF); 3,000 continuity measurements (5s ON / 55 s OFF)
+ Dimensions (hxwxd) / Weight / IP rating: 211 x 108 x 60 mm / 850 g / IP 54 / IK 04
+ EMC / Electrical safety: IEC 61326-1 / IEC 61010-1 and IEC 61010-2-030, 600V CAT IV
+ Compliance with standards: IEC 61557 parts 1, 2, 4 and 10
State at delivery: delivered with a carrying bag for hands-free use,2 elbowed-straight safety leads (red and black) 1.50 m long, one red crocodile clip, one black test probe, 6 x LR6 or AA batteries, multilingual user’s manual on CD,a quick start-up guide, multilingual safety datasheet + a CD containing the Megohmmeter Transfer software.
Accessories and replacement parts :
- Continuity rod P01102084A
- C.A 861 thermometer + K thermocouple P01650101Z
- USB-Bluetooth adapter P01156301Z
- B? phát Bluetooth g?n c?ng USB P01102112
- 2 elbowed-straight safety leads (red and black) 1.50 m longP01295453Z
- 2 crocodile clips (red and black) P01295457Z
- 2 test probes (red and black) P01295454Z
- 2 wire grips (red and black) P01102053Z
- Carrying bag for hands-free use P01298049
datasheet
user guider
catalog vietnamese
catalog english
Advantages

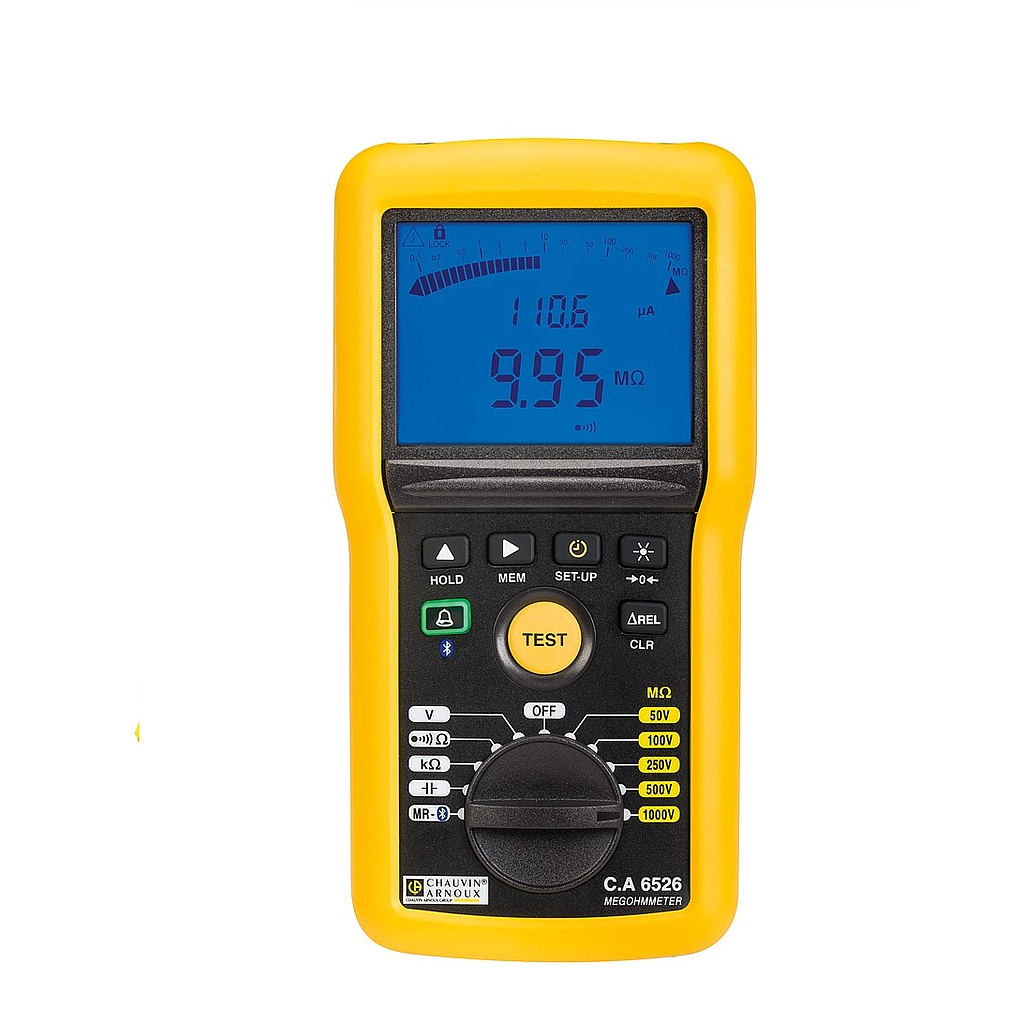

1 kV Insulation and Continuity Tester
Industrial maintenance
40 GΩ / Test voltage 250-500-1,000 V
Manual / Lock / Duration modes
Continuity, Voltage
Ergonomics:
The new C.A 652x & C.A 653x insulation testers are compact, lightweight and simple to use, offering greater comfort for users:
- Casing designed with 600V CAT IV safety and IP54 / IK04 protection for a comfortable grip in total safety with easy access to the TEST button, even when the user is wearing safety gloves
- Magnetic stand for fixing the product on a metal surface so that users have their hands free when measuring and reading the result
- Wide backlit screen with double digital display and logarithmic bargraph, secondary display showing the actual test voltage, the test current and the timer value, in addition to the value measured
- Remote control with torch for error-free identification of the points of measurement, even in environments with poor lighting
Insulation tests:
This new range is equipped with various insulation test voltages ranging from 10 V to 1 kV. The dynamic range for insulation measurement extends up to 200 GΩ, remaining compliant with the IEC 61557 standard up to 2 GΩ.
In addition to the manual mode, there are also new insulation test modes such as Lock mode, Timer mode and calculation of the PI & DARratios.
Continuity tests:
The continuity test function, which complies with the IEC 61557 standard (200 mA current), is enhanced on certain models with a 20 mA test current, with the advantage of prolonging battery life in normal use. This function is equipped with activefuselessprotection if a voltage is present.
Measurement adaptability:
On most of the models in the C.A 652X & C.A 653x range, you can activate an alarm threshold, choosing between 2 fixed thresholds and 1 customizable threshold for each measurement.
Furthermore, the ΔREL function can be used to display the measurements which differ from a reference measurement. The display shows the value of the variation and the percentage in relation to the reference.
Other functions:
DMM functions are available with measurement of voltage up to 700 V, frequency up to 800 Hz, resistance up to 999 kΩ and capacitance up to 10 µF.
Easy operation:
Analysis of the measurements is facilitated by storage of 300 measurements on the instrument. The memory capacity is extended to 1,300 locations for the versions with Bluetooth® communication. The Megohmmeter Transfer (MEG) software module, delivered as standard with the communicating versions, allows remote test activation with real-time graphical display and transfer of the stored measurements onto a PC. The values are then displayed by type of measurement.
The DataView® software suite (option) generates customized measurement reports which may include the location of the site and the contact details of the operator.
Specifications:
INSULATION: 250-500-1000 V test voltages
Measurement range: 40 GΩ
Test mode: Manual, Lock and Timer
Continuity: 200 mA measurement current
Voltage measurement: 700 V
Double display + logarithmic bargraph
Powered by 6 x LR6 / AA batteries
Dimensions: 211 x 108 x 60 mm
Weight: 850 g
IP54 , safety category: 600 V CAT IV
