Direct access to our certified experts
Insulation (MΩ calibre)
- Test voltage (VDC)500 V
- Range: 0.1 to 1000 MΩ
- Accuracy: ± 5 % of measurement
Continuity
- Range: -10 to +10 Ω
- Accuracy: ± 3 % at full scale
- Measurement current: ≥ 200 mA
- Reverse current: Yes
Voltage
- Range: 0 to 600 VAC
- Frequency: 45 to 400 Hz
- Accuracy: 3 % at full scale
Other features
- Display: Analog
- Dimensions: 167 x 106 x 55 mm
- Weight: 500 g
- Power supply: 4 x 1.5 V AA batteries
- Electrical safety: IEC 61010 – 600 V CAT III
State at delivery: Delivered mounted in its shockproof housing with 2 elbowed/straight PVC leads 1.5 m long (black/red), 1 black test probe, 1 red crocodile clip, 1 operating manual, 4 x 1.5 V AA batteries.
Optional compatible accessories for VX 0100:
-C.A 846 thermo-hygrometer P01156301Z
-C.A 861 thermometer + K thermocouple P01650101Z
-Set of 2 crocodiles clips (red/black) P01102052Z
-Set of 2 test probes (red/black) P01102051Z
-Set of 2 leads 1.5 m long (red/black) P01295283Z
-1.5 V AA alkaline battery P01296033
-1.5 V AA alkaline battery (x12) P01296033A
-1.5 V AA alkaline battery (x24) P01296033B
-1.6 A fuse P01297022
-Shockproof housing no.13 P01298016

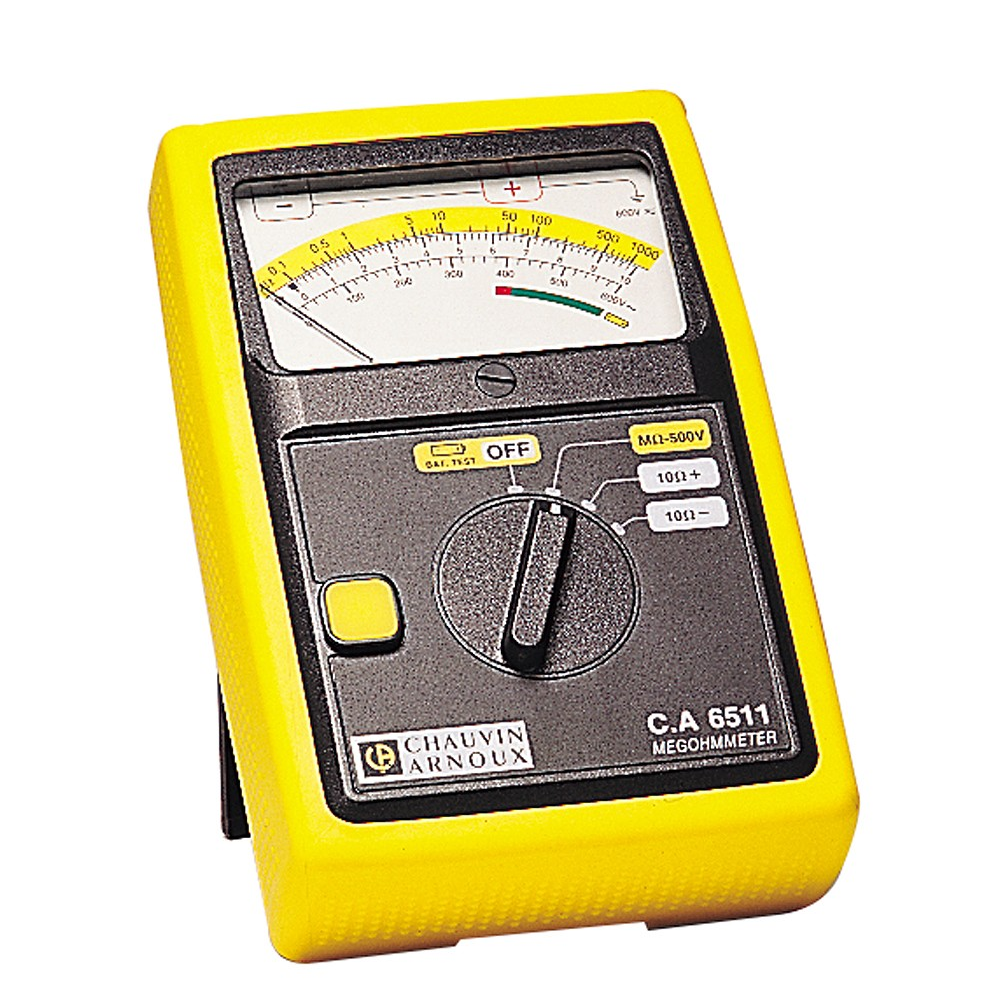

Analogue insulation tester at 500 V DC
The C.A 6511 is an economical insulation and continuity tester popular with self-employed electricians, installers and maintenance departments for measurements on electrical devices and installations.
Functions and specifications:
