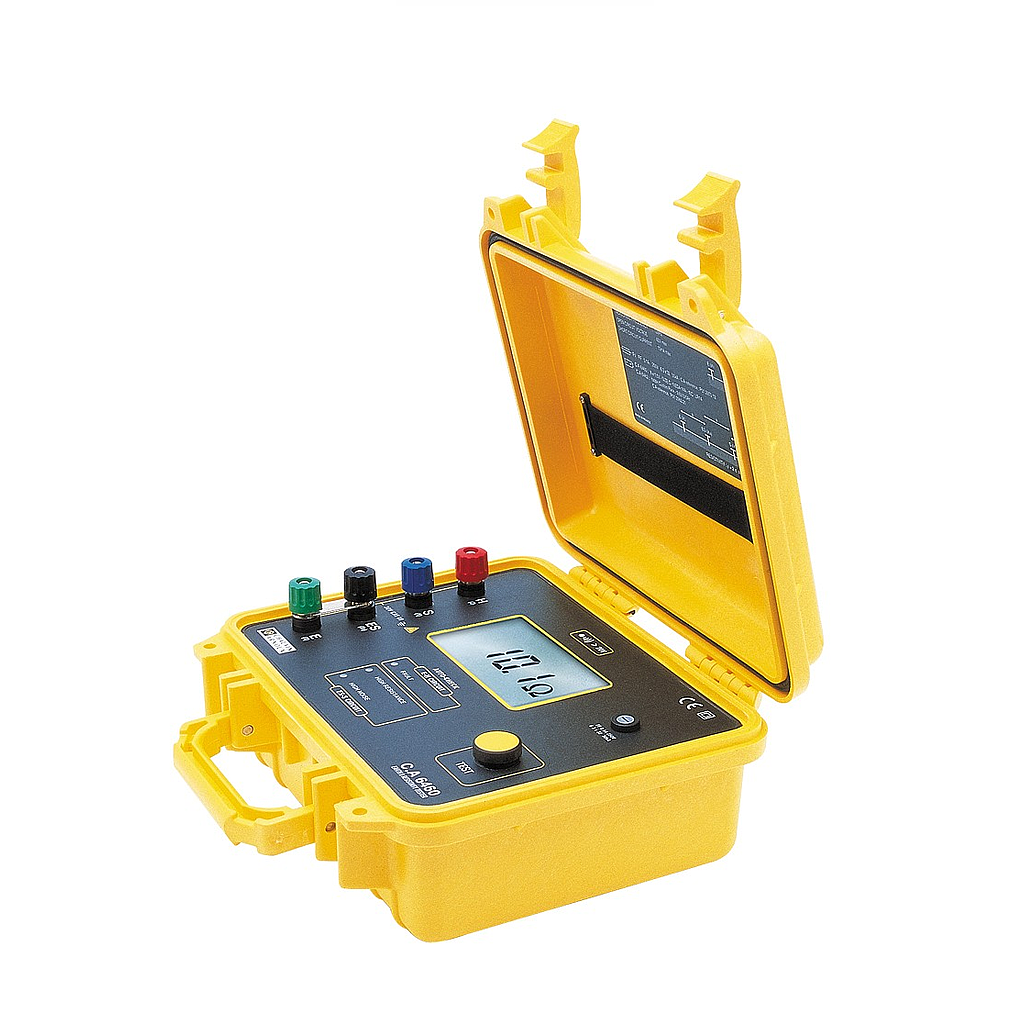

Chauvin Arnoux C.A 6460 Earth and resistivity testers (P01126501, 3 dây)

Specifications
- 3P Method
+ Range: 0.01 to 2,000 Ω
+ Resolution: 10 mΩ/100 mΩ/1 Ω
+ Coupling measurement: Yes
- 4P Method:
+ Range: 0.01 to 2,000 Ω
+ Resolution: 10 mΩ/100 mΩ/1 Ω
- Earth measurement with 2 clamps
- Resistivity:
+ Test method: Wenner et Schlumberger
+ Range: 0,01 to 99,9kΩ
+ Measurement frequency: 128Hz
- Dimensions / weight: 273 x 247 x 127 mm / 2.8 kg / 3.3 kg
- Safety: 50V CAT III, IEC 61010 & IEC 61557

State at delivery: delivered with 8 x 1.5 V LR6 batteries and 1 operating manual in 5 languages

Accessories (optional):
- Earth and resistivity kit (100 m kit) (P01102024) Compartment bag with space for testercontaining: 4 "T"-shaped rods, 4 coils of cable (100m red, 100m blue, 100m green,30m black), 1 green 10m cable coiler, 1 mallet, 5 x Ø4 mm lug/banana plug adapters Standard 3P-method earth kit
- 50 m kit (P01102021) Carrying case containing: 2“T”-shaped rods, 2 coils of cable(50m red, 50m blue), 1 green 10m cable coiler, 1 mallet,5 x Ø4 mm lug/banana plug adapters
- 100 m kit (P01102022) Carrying case containing: 2“T”-shaped rodss, 2 coils of cable (100m red, 100m blue), 1 green 10m cable coiler, 1 mallet, 5 x Ø4 mm lug/banana plug adapters
