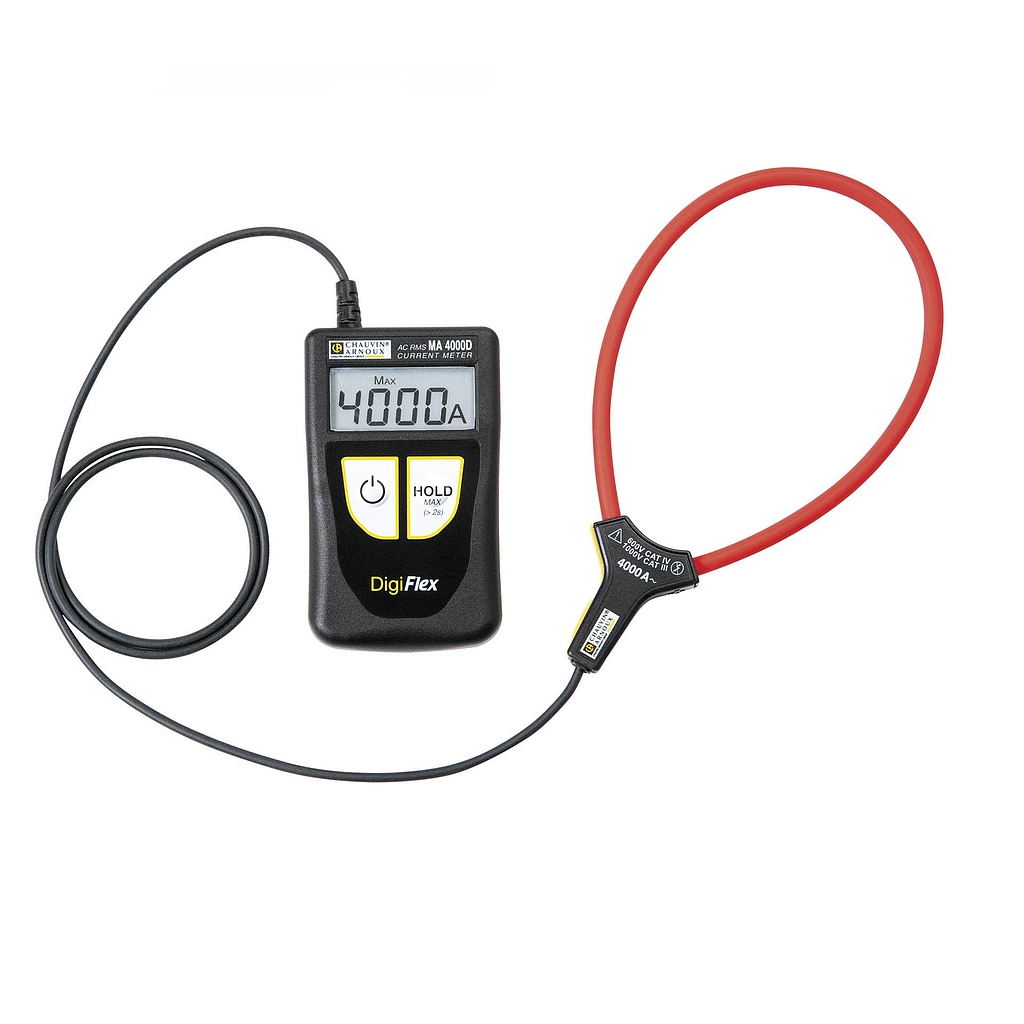

Chauvin Arnoux MA4000D-350 clamp meter (AC 4000A)

- Display range: 40 A AC - 400 A AC - 4,000 A AC
- Measurement range: 0.01 A - 39.99 A; 40.0 A-399.9 A; 400 A-3,999 A
- Resolution : 1 mA; 10 mA; 100 mA
- Accuracy: ± (2 %+ 10 số); ± (1.5 %+ 2 số); ± (1.5 %+ 2 số)
- Sensor clamping diam. / length: Ø 100 mm / 350 mm
- Bandwidth: 10 Hz - 3 kHz
- Power supply: 2 x 1.5 V AAA/LR3 batteries
- Safety: IEC 61010 CAT IV 600V
- Operating temperature: 0°C to +50°C
- Instrument weight: Approx. 130 g
- Casing dimensions: 100 x 60 x 20 mm
- Length of connection cable: 0.8 m

State at delivery: 1 DigiFLEX sensor delivered in a blister pack with 2 x 1.5V AAA batteries, 1 elastic strap and an operating manual in 5 languages
Accessories & Replacement Parts:
Bag 120 x 200 x 60 P01298074
MULTIFIX accessories P01102100Z
Elastic strap P01102113
