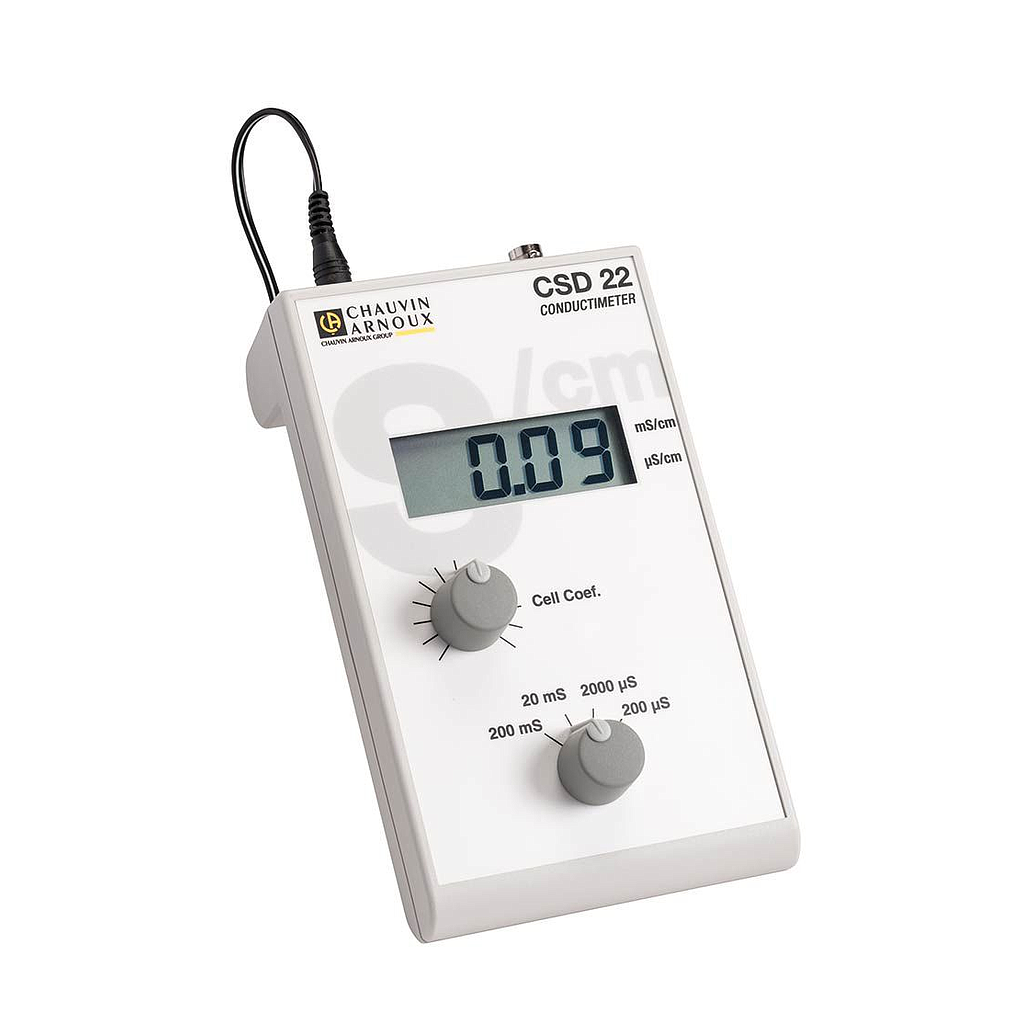

Chauvin Arnoux CSD22 Conductivity meter (0~200mS/cm)

- Screen: 1 x 2,000-count LCD screen
- Measurement parameters: Conductivity
METROLOGICAL PERFORMANCE
- Measurement range and associated resolution (Rs)
+ Conductivity:
4 ranges:
0 - 200 µS/cm
0 - 2 000 µS/cm
0 - 20 mS/cm
0 - 200 mS/cm
Resolutions:
Rs = 0.1 μS/cm
Rs = 1 μS/cm
Rs = 0.01 mS/cm
Rs = 0.1 mS/cm
- Calibration: manual, 1 point
ENVIRONMENTAL SPECIFICATIONS
- Operating temperature: 0 to 50 °C
- Humidity: 5 to 80 % at 35 °C
- Pollution degree: Usage category 2
- Altitude limit: 2,000 m
- Conformity: NF EN 61010-1 — NF EN 61326 (class B)
PHYSICAL SPECIFICATIONS
- Dimensions (length x width x depth): 187 x 106 x 54 mm
- Weight: 280 g
- Connections (inputs): BNC plug for conductivity cell
- Communication (outputs): Isolated 4 mm terminals for recorder output
- Power supply: 9 V mains battery (supplied)
