Chauvin Arnoux CA 6683 LOCAT Cable Locator

SENDER CA 6683E

Display Backlit graphic: LCD display

Information displayed: Measured voltage level, polarity (AC or DC), transmitted signal power, battery status, identification code, high voltage presence.

External voltage identification range: 12 V, 50 V, 120 V, 230 V and 40 V 50/60 Hz or DC ± 2.5 %

Output signal frequency: 125 kHz

Signal power: Adjustable (3 levels)

Transmitter identification: Digital signal coding allowing the use of 7 transmitters simultaneously

Power supply: 6 x 1.5 V LR03/AAA batteries

Security: Compliant with IEC 61010 300 V CAT III

Operating/storage temperature: 0 to 40°C/-20 to +60°C

Dimensions/Weight: Approx. 160 x 84 x 40 mm / 350 g

CA 6683R RECEIVER

Screen Backlit graphic: LCD display

Information displayed: Signal amplitude (digital value + graduated scale), detection sensitivity,  transmitter identification code and transmitted signal strength, battery status,  high voltage presence.

Detection distance with transmitter

- in unipolar mode: 2 m typical

- in bipolar mode: 0.5 m typical

- single loopback line: up to 2.5 m

Detection sensitivity: Automatic or manual adjustment (7 levels)

Non-contact voltage detection (NCV): 12 V to 1000 Vac at 50/60 Hz, voltage referenced to earth

Other functions: Torch; audible signal deactivation

Power supply: 6 x 1.5 V LR03/AAA batteries

Safety: Type F probe compliant with IEC 61010-031 300 V CAT III

Operating / storage temperature: 0 to 40°C/-20 to +60°C

Dimensions/Weight: Approx. 198 x 67 x 36 mm / 310 g

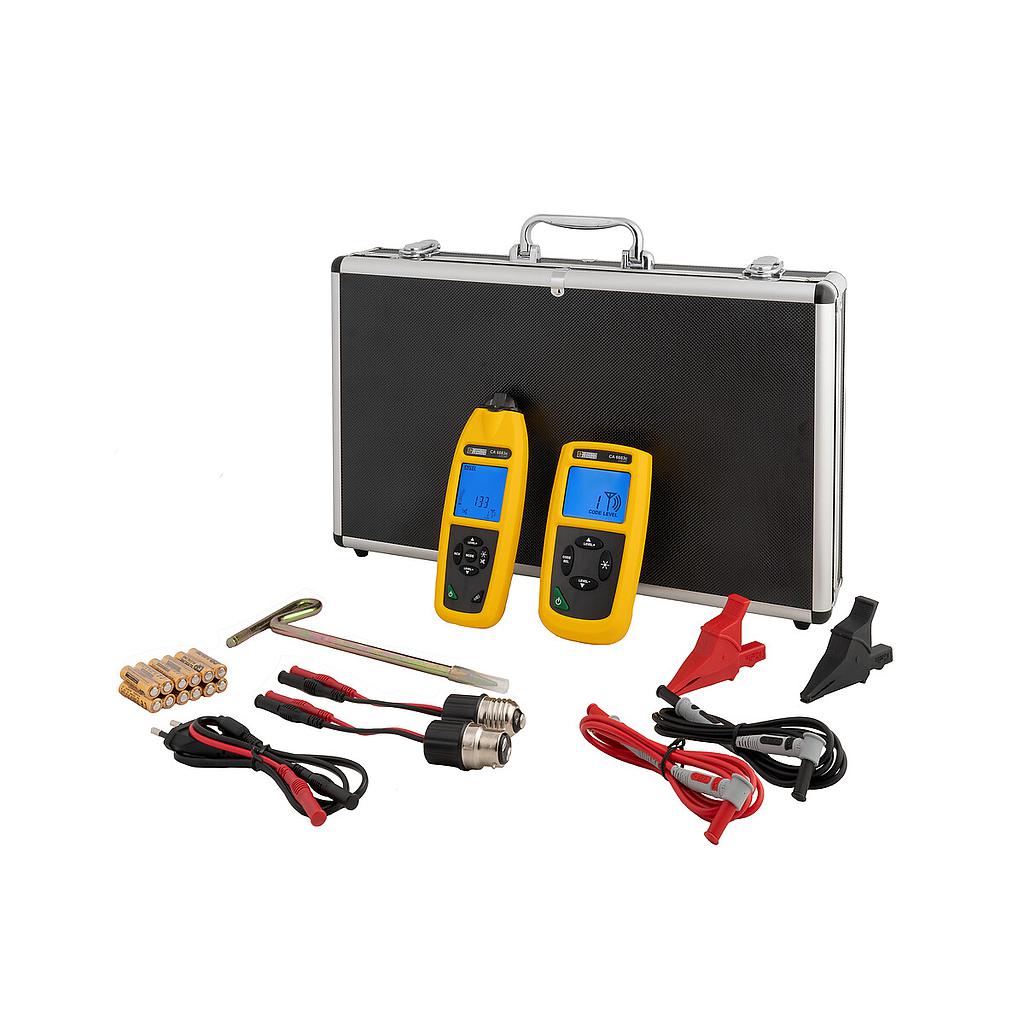

1 CA6683E transmitter and 1 CA6683R receiver supplied in a case with:

 • 1 set of 2 crocodile clips

 • 1 T-shaped earth stake

 • 1 set of 3 adapters: P/N mains plug, B22 bayonet socket and E27 screw socket

 • 2 sets of 6 1.5 V LR03/AAA alkaline batteries

 • 1 user manual in 5 languages

Datasheet
