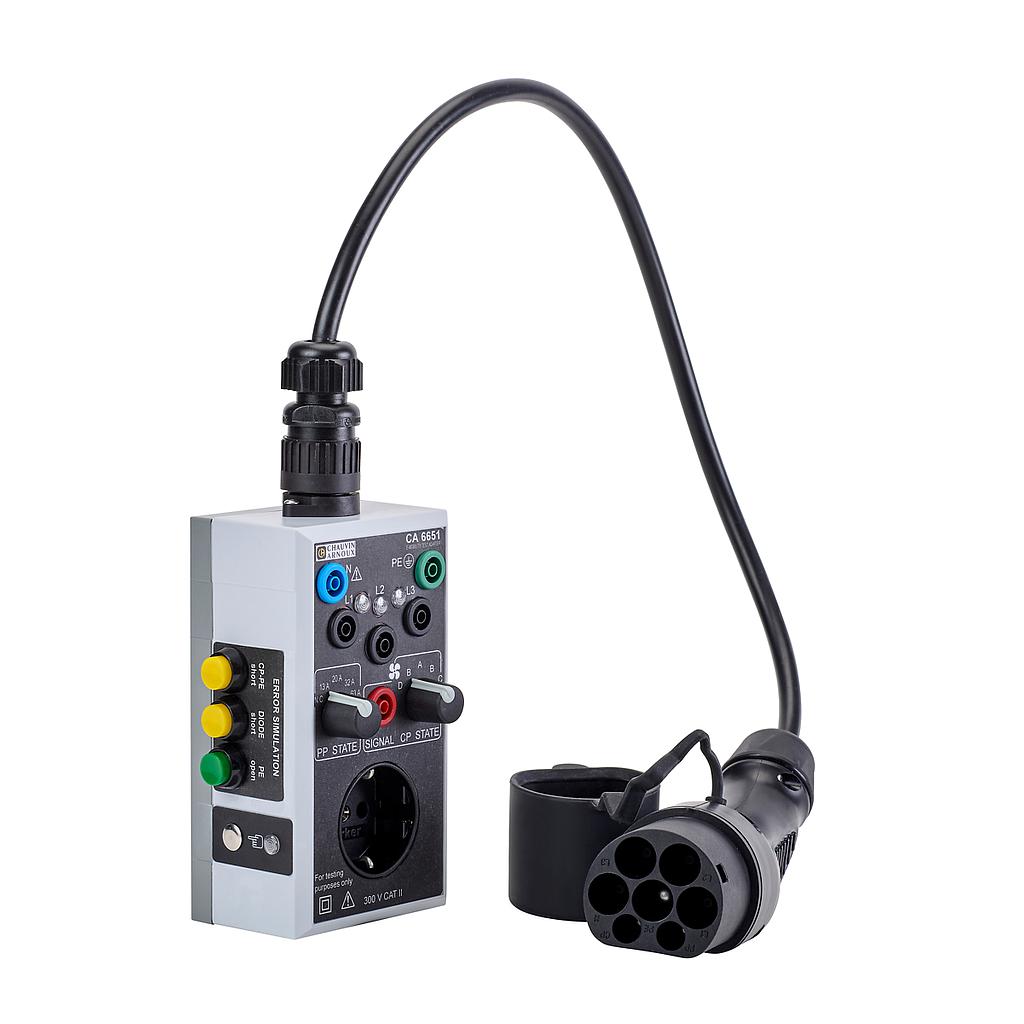

Chauvin Arnoux CA 6651 Test Adapter for Electric Vehicle Charging Stations

PP simulation: Open NC, 13A , 20A, 32A, 63A - selection via rotary switch

CP status: A, B, C, D

CP/PE error: 3 buttons on side for error simulation; CP/PE or diode short-circuit and opening of PE

Earth fault PE error: PP switch position NC

Protection / Admissible overload: 600 Vrms

Outputs

L1/L2/L3/N and PE measurement terminals: 230 V single-phase and 400 V three-phase 50 Hz, 5 sockets with 4 mm diameter for connection of the installation tester,

equipped with banana plugs

SCHUKO-type mains socket (earth provided by the 2 studs on the inner edges): Max 250 V, CAT II 300 V, admissible current 10 A (fuse)

CP signal terminal: PWM +/-12V communication protocol

Specifications

Input voltage: 230 V/400 V AC 50/60 Hz 10 A

EVC-20 charging-station socket connector with protective cover: Charging mode 3 adapted to IEC 62196-2 type 2 socket or fixed cable with connector for type 2 vehicle, three-phase

Power socket protection: Fuse T 10 A/250 V

General Specifications

LEDs: X3 - blue

Electric vehicle standards - Installation: IEC 61851-1 / IEC 60364-7-722

Safety: EN 61010-1, pollution degree 2, CAT II 300V

IP: IP 20 as per IEC 60529

Connection socket: Type 2 32 A 3PH+N+PE type E2201 200/346 V

Dimensions / weight: Casing dimensions 150x83x77 mm / Weight: 850 g

Option: CA.6117
