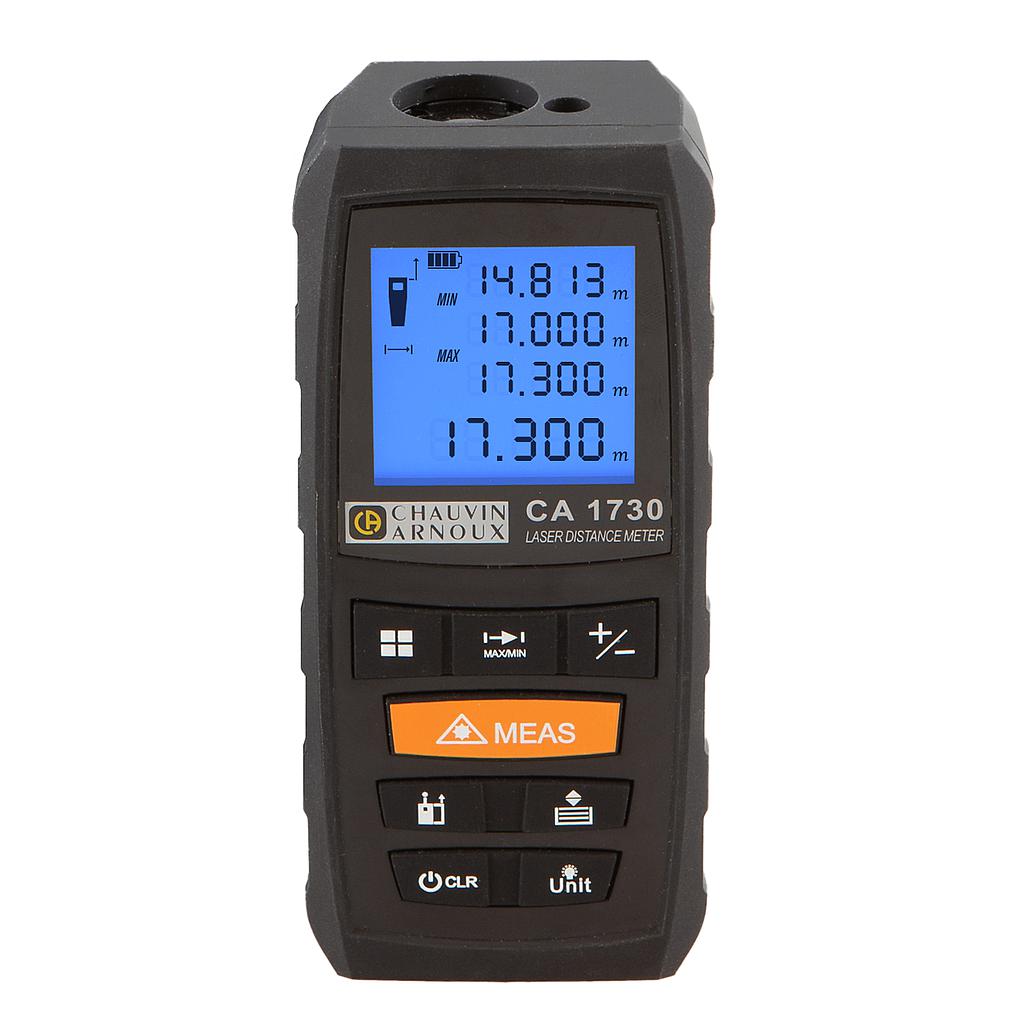

Chauvin Arnoux CA 1730 Laser distance meter (0,2 ~ 60 m)

CA 1730 Distance Meter

Measurement range: 0.2 ~ 60 metres

Accuracy: ± 2 mm + 5 x 10-5 Distance

Area & volume measurement: Yes

Addition/Subtraction: Yes

One-shot measurement: Yes

Continuous measurement: Yes

Display: On 4 lines with backlighting

Audible signal: Yes

Data storage: Log of last 20 measurements

Units: m / in / ft / ft+in

Power supply

Type: Type AAA 2 x 1.5 V

Battery life: Approximately 5,000 measurements

Auto power-off:LASER auto power-off (30 seconds); Instrument auto power-off (180 seconds)

Physical specifications

Dimensions / Weight: 115 x 52 x 32 mm / 118 g

Protection: IP54

Operating range Temperature: 0 to +40 ° C without condensation; Storage: -10°C to +60°C

Compliance: Compliance with the IEC/EN 61326-1 or BS EN 61326-1 and IEC/EN 61010-1 and BS EN 61010-1 standards; LASER safety standards: IEC 60825-1; LASER: Class II; LASER wavelength: 630 nm ~ 670 nm – Power < 1 mW

STANDARD STATE AT DELIVERY:

Instrument delivered in a cardboard box with a bag, 2 x AAA batteries, User’s Manual in 5 languages and verification certificate.
