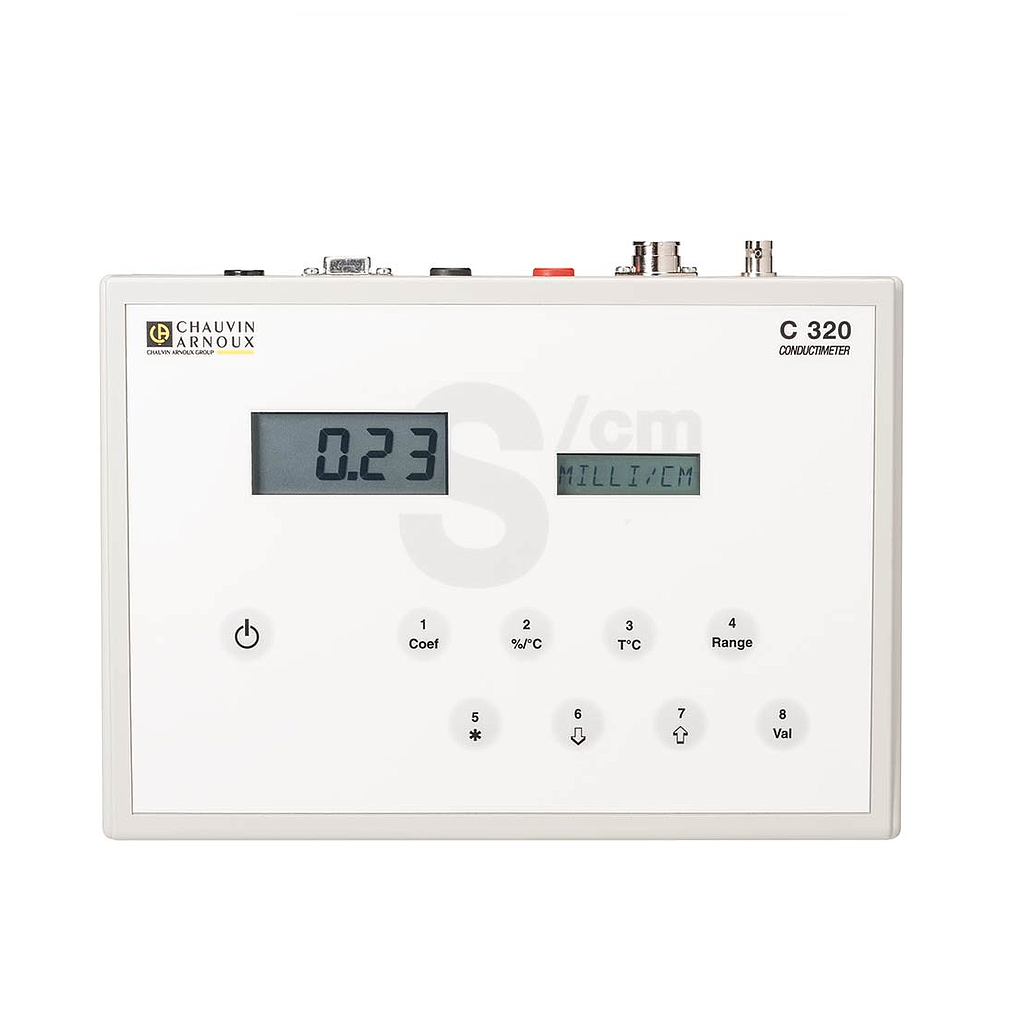

Chauvin Arnox C320 conductivity meter (0~200mS/cm; -10~200°C)

- Screen: 1 x 2,000-count LCD + 1 x 8-character alphanumeric display
- Measurement parameters: Conductivity, Temperature
METROLOGICAL PERFORMANCE
- Measurement range and associated resolution (Rs):
+ Conductivity
6 measurement ranges:
0 - 2,000 nS/cm
0 - 20 μS/cm
0 - 200 μS/cm
0 - 2,000 μS/cm
0 - 20 mS/cm
0 - 200 mS/cm
Resolution:
Rs = 1 nS/cm
Rs = 0.01 μS/cm
Rs = 0.1 μS/cm
Rs = 1 μS/cm
Rs = 0.01 mS/cm
Rs = 0.1 mS/cm
+ Temperature:
Manual correction: 0 - 200 °C (Rs = 0.1 °C)
Automatic correction (with Pt100 sensor): -10 - 200 °C (Rs = 0.1 °C)
Calibration: Manual
FUNCTIONS
Temperature compensation:
ATC or MTC
Linear: 0 to 8.0 %/°C
Reference temperature: 25 °C
ENVIRONMENTAL SPECIFICATIONS
- Operating temperature: 0 to 50 °C
- Humidity: 5 to 80 % at 35 °C
- Pollution degree: Usage category 2
- Altitude limit: 2,000 m
- Conformity: NF EN 61010-1 — NF EN 61326 (Class B)
PHYSICAL SPECIFICATIONS
- Dimensions (length x width x depth): 275 x 208 x 51 mm
- Weight: 780 g
- Connections (inputs):
BNC plug for conductivity cell
5-pin plug for conductivity and temperature cell or temperature sensor only
- Communication (outputs):
2 isolated 4 mm outputs for analogue recorder output
9-female-channel sub.d connector for RS232 output
- Power supply: 9 V mains battery (supplied)
