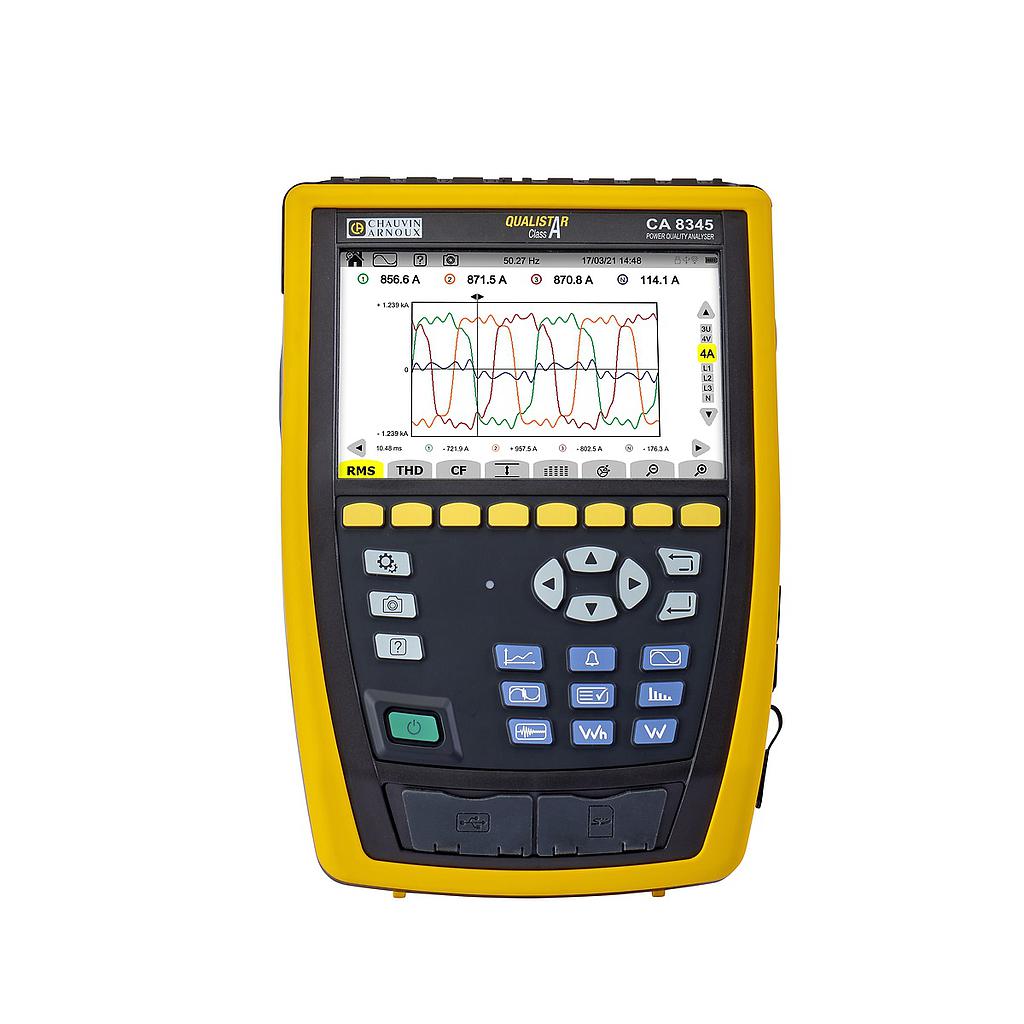

Chauvin Arnoux C.A 8345 Power Quality Analyser (5V~1,000Vac Vdc; Class A)

Inputs: Voltage/current, isolated

Voltage: 5 V to 1,000 Vac and Vdc

IEC 61000-4-30 (Ed 3): Class A (Full)

Screen: 7" colour LCD touch screen: 800 x 480 (WVGA)

Clock / GPS: Yes, built-in

Real-time mode: Yes

Sampling rate: Voltage 400 kSps / Current 200 kSps / Surge 2 MSps

Power mode: Yes

Energy mode: Yes

Unbalance mode: Composite

Harmonics mode: DC to 63rd order

Interharmonics mode: 0 to 62nd order

Trend recording: > 900 parameters

Alarm mode (types / number): 52 / 20,000

Carrier current detection mode: Yes

Inrush capture (number): 100

2.5 μs transients (number): No maximum (SD card)

Shockwaves: Up to 12 kV sampled every 500ns

EN50160 monitoring mode: With PAT3 software

USB communication: Yes

SD card: Accessible, external

Ethernet: Yes

Wifi: Yes

Web server: Yes

USB key port (Type A): Yes

Battery cartridge: Li-ion – 5800 Ah

IEC 61010 safety: CAT IV 1000V

Protection: IP54

Operating temperature: [+0°C; +40°C]

Environmental compliance: IEC 61557-12 & IEC 62586

Dimensions (HxLxD): 200x285x55mm / 1.9kg
