- For professionals
- Voltage: 15 KV
- Insulation: 500/1,000/2,500/5,000/10,000/15,000 V
- Range : 10 kΩ to 30 TΩ
- Continuity: yes
- Resistance : yes
- Capacitance: 0.001 - 9.999 μF / 10.00 - 49.99 μF
- Current: Leakage current from 0 to 10 mA
- Voltage ramp mode: 3 pre-configurable ramps
- R calcul. (ref. T°): yes
- Alarms: yes
- Smoothed display: yes
- Chronometer: yes
- Prog. test time: yes
- Quality ratios: DAR / PI / DD / ΔR (ppm/V)
- R(t): display on screen
- R(t) + U(t), I(t), I(u): Graphic display of curves
- Storage: 256 kB, up to 80,000 recordings
- Communication: Optically-isolated port for USB and RS232 link
- Power supply: NiMH battery rechargeable with external voltage
- Safety: 1,000 V Cat. IV - IEC 61010-1 and IEC 61557
- Backlighting: yes
- Dimensions: 340 x 300 x 200 mm
- Weight: 6.2 kg
State at delivery:
Delivered with bag containing :
• 2 safety leads 3m long equipped with an HV connector at each end (red / blue),
• shielded safety lead 3 m long equipped with an HV connector at one end and an HV connector with rear connection (black) at the other end,
• 3 crocodile clips (red, blue, black),
• 2 x CAT IV 1000 V test probes (red, black) for voltage measurement,
• 1 blue lead with rear connection,
• 1 mains power cable 2 m long,
• DataView® software,
• 1 optical / USB communication lead,
• 1 operating manual in 5 languages on CD-ROM
Accessories
3 HV leads with croc. clips for 10/15 kV P01295466
Blue 8 m HV lead with croc. clips P01295468
Red 8 m HV lead with croc. clips P01295469
Black 8 m HV lead with croc. clips P01295470
Blue 15 m HV lead with croc. clips P01295471
Red 15 m HV lead with croc. clips P01295472
Black 15 m HV lead with croc. clips P01295473
3 x 3 m HV leads for 10/15 kV P01295465
50 cm HV lead with rear connection P01295467
2 red/black test probes P01295454Z
3 crocodile clips: red/blue/black P01103062
Bag P01298066
datasheet
user guider
catalog vietnamese
catalog english

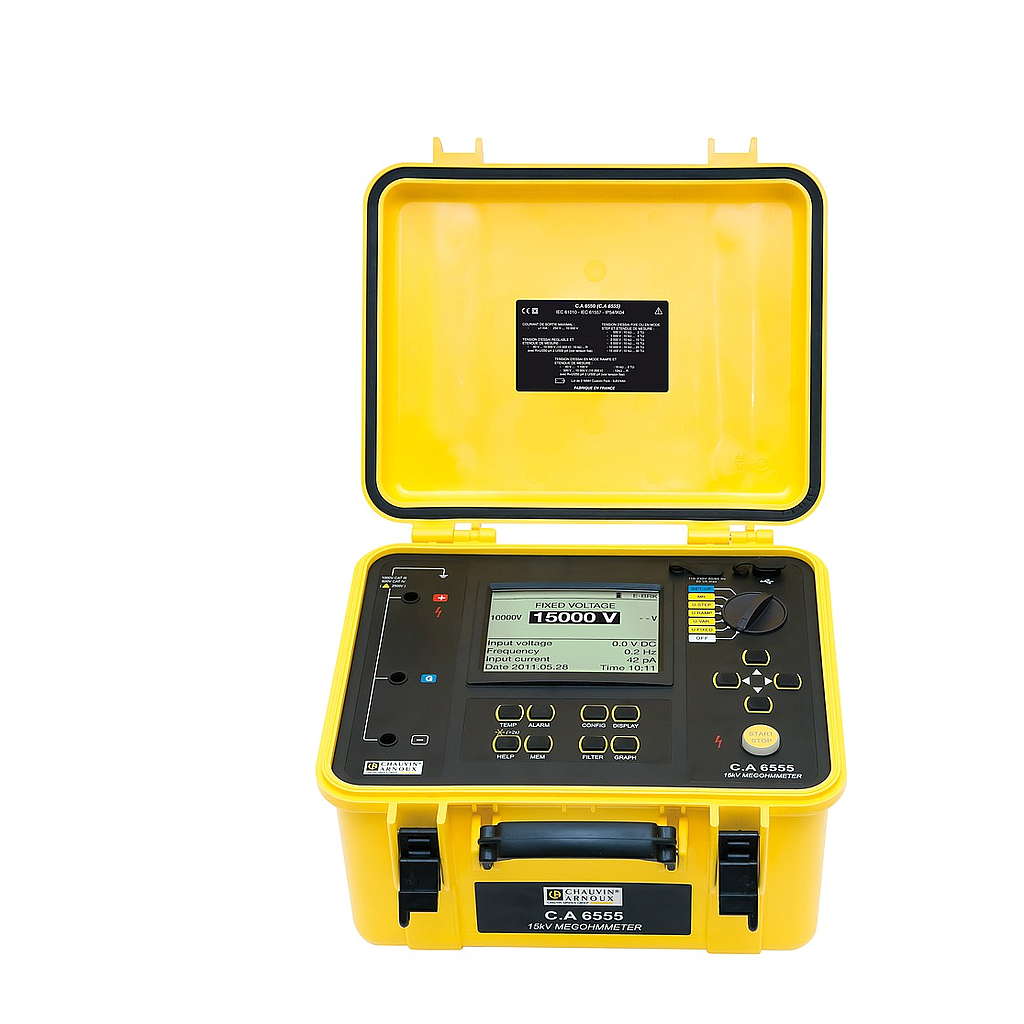

15,000 V insulation tester
With its site-proof casing, the C.A 6555 insulation tester is used to check equipment insulation during manufacturing, on-site installation work, periodic inspections and recommissioning of installations.
They are ideal for electricity companies, manufacturers, installers, maintenance firms, industry, R&D centres and infrastructure.
Specially adapted for checking insulation on rotating machinery with a 12 kV power supply or higher, the C.A 6550 complies with the IEEE43
standard which recommends testing insulation at 5-10 kV.
Functions and specifications:
