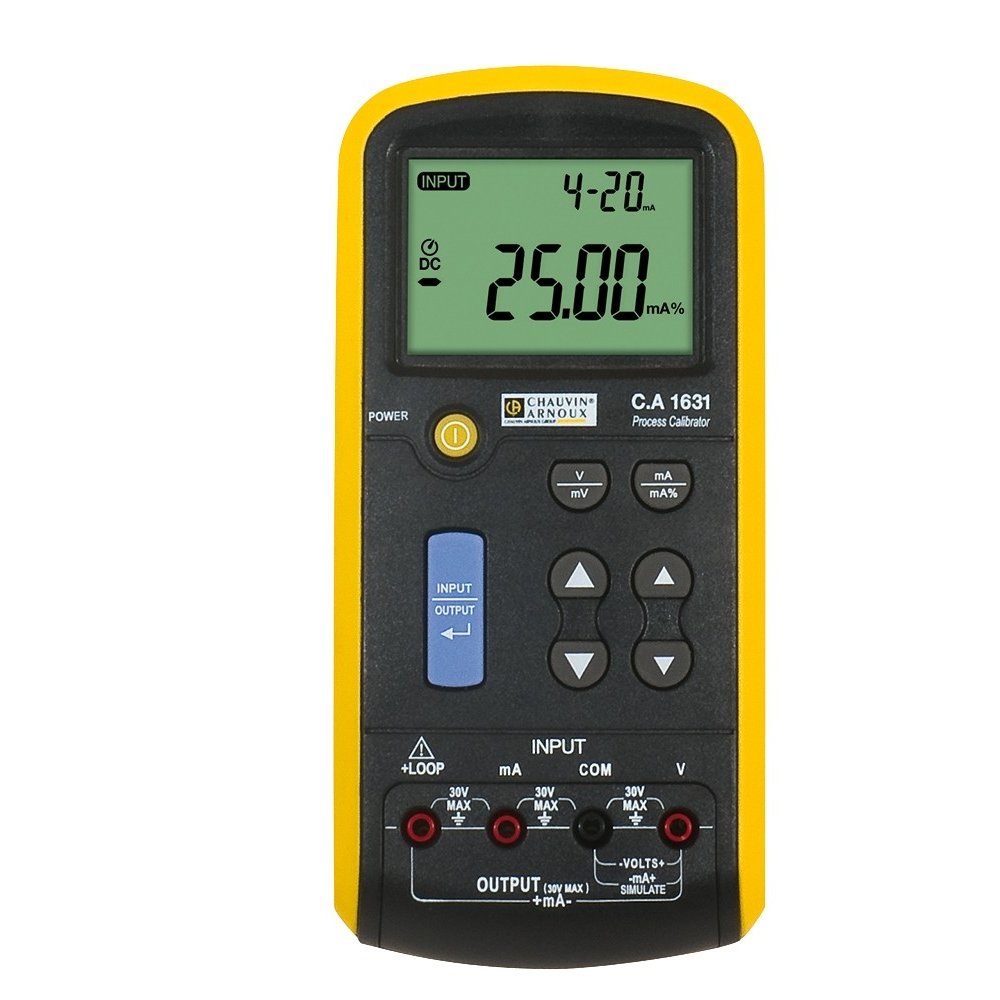

Chauvin Arnoux C.A 1631 Voltage/Current Process-signal Calibrator (100 mV/ 20 V, 24 mA)

DC voltage input and output specifications
- Calibre: 100 mV/ 20 V
- Resolution: 0.01 mV/ 0.001 V
- Accuracy ± 0.02 % + 3 (% of reading + counts)
- Input impedance: 2 MΩ (rated value), < 100 pF
- Protection against overvoltage: 30 V
- Current delivered by rated voltage: 1 mA
DC current input and output specifications
- Calibre: 24 mA
- Resolution: 0.001 mA
- Accuracy ± 0.015 % + 3(% of reading + counts)
- Protection against overloads: 125 mA/250 V quick-response fuse
- Display as percentage: 0 % = 4 mA, 100 % = 20 mA
- Source mode: 1,000 Ω load at 20 mA for battery voltage ≥ 6.8 V, (700 Ω at 20 mA for a battery voltage between 5.8 and 6.8 V)
- Simulation: external loop voltage condition: 24 V (rated value), 30 V maximum, 12 V minimum
- Loop voltage supply: 24 V ± 10 %
- General specification
+ Power supply : 6 x 1.5 V
+ Dimension : 205 x 97 x 45 mm/ 472 g
+ Mains power supply: Input: 100 V – 240 VAC, 50–60 Hz 1.8 A ; Output: 12 VDC, 2 A MAX

Delivered with 2 pairs of test wires and crocodile clip, 6 AAA 1.5 V batteries, 1 operating manual in 5 languages and 1 carrying bag
Accessory: Mains power supply P01103057
