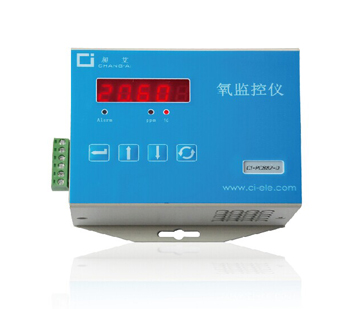

Chang AI CI-PC882 Ambient oxygen transmitter (0~40.00% O2)

Display Resolution: 0.01%

Sensor: ion flow oxygen sensor

Measurement Range: 0~40.00% O2

Accuracy: ±1%FS

Repeatability: ±0.5%FS

Stability: ±0.5% FS/7d

Response Time: T90<20 second (Fully Preheated)

Sensor Life: Greater than 5 years (normal use)

Analyzer Life: Greater than 10 years (normal use)

Calibration Period: 1 year (recommend)

Power Supply: 24V DC power consumption less than 10VA

Ambient Temperature: -10~55°C

Environmental Humidity: <80%RH

Sample Pressure: atmospheric pressure

Installation Mode: Bottom bracket installation

Circuit Structure: Apply to non-hazardous occasions

Measurement Method: diffusion

Communication: RS232/485

Analog Output: Free setting; 0~20mA/4~20mA/0~1V/0~5V/0~10V/1~5V analog output mode

Dimension: L×W×H=120mm×118mm×62.5mm
