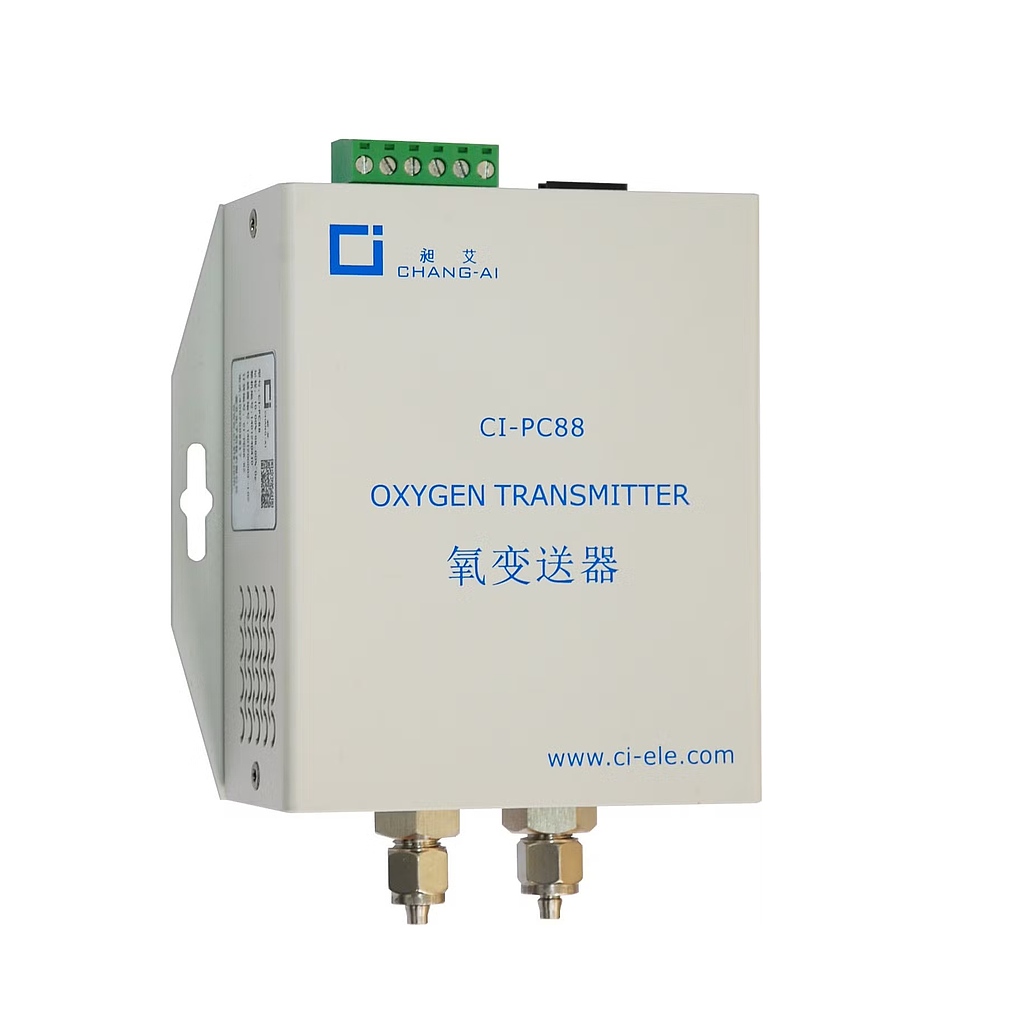

Chang AI CI-PC88 High content oxygen analyzer (10%~95%/99.99% O2)

Measure range: 10%~95%/99.99% O2

Accuracy: ±1%FS

Repeatability: ±0.5%FS

Stability: ±0.5%FS/7d

Response time: T90<20s (after full preheating)

Sensor: 3D Ion flow oxygen sensor

Sensor life: more than 5 years (normal use)

Instrument life: more than 10 years (normal use)

Weight: about 0.5kg

Power supply: 24VDC,Analyzer power consumption: <10VA

Environment temperature: -10~55°C,Environment Humidity:<80%RH

Sample flow rate: 400~600ml/min

Analog output: 1 set,4-20mA/0-20mA/0-1V/0-5V/0-10V/ 1-5V,(You can set the mode freely).

Communication: RS232/RS485
