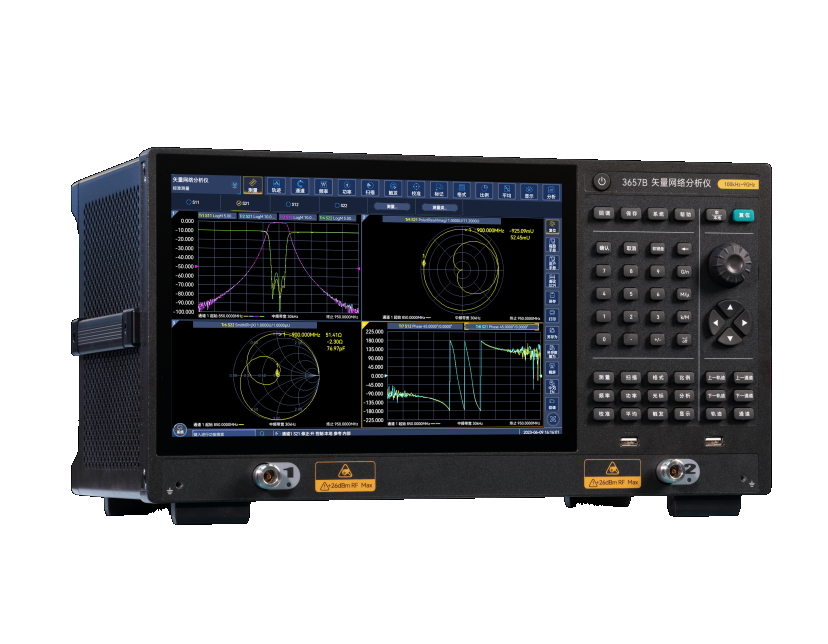

Frequency Range: 100 kHz to 9 GHz
Frequency Resolution: 1 Hz
Frequency Accuracy: ±5×10-6 (23°C ± 3°C)
Dynamic Range: Up to 140dB
IF Bandwidth: 1MHz – 2MHz
Number of Built-In Ports: 2-port (standard), 4-port (option)
Measurement Fields: Frequency domain and Time domain
Display Format: Logarithmic amplitude, linear range, standing wave, phase, group delay, smith chart, polar diagram
Power Supply: 50 Hz 220 V AC / 60 Hz 110 V AC
Power Consumption: 150 W
Display: 12.1-inch high brightness LCD
Dimension: 426 (W) × 88.1 (H) × 500 (D) mm
Weight: 12.5 kg
See more detail information in the Datasheet
