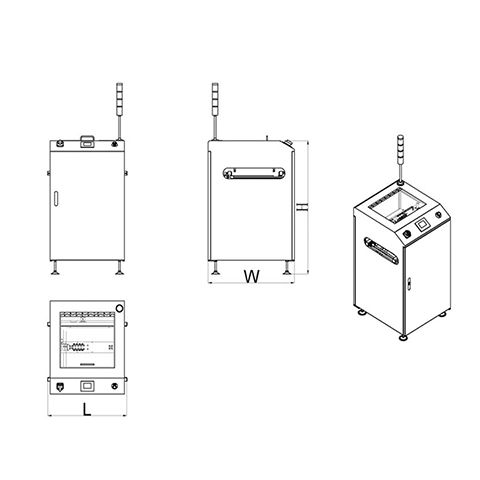

Dimension(mm): 600*1002*1300
PCB size(mm): 50*50-445*330
Maximum PCBs capacity: 400pcs(0.6mm thick PCB)
Time feed PCB: Approx. 12 Seconds or specity
Indexing pitch: 10. 20. 30. 40mm selectable
Power supply: AC 220V±10V, 50/60HZ
Power: Max 150VA
Air prssure: 4-6bar
Air consumption: 10itr/min max
Transport height: 900±20mm(or customer specified))
PCB direction: L-R or R-L (optional)
Weight: 310kg

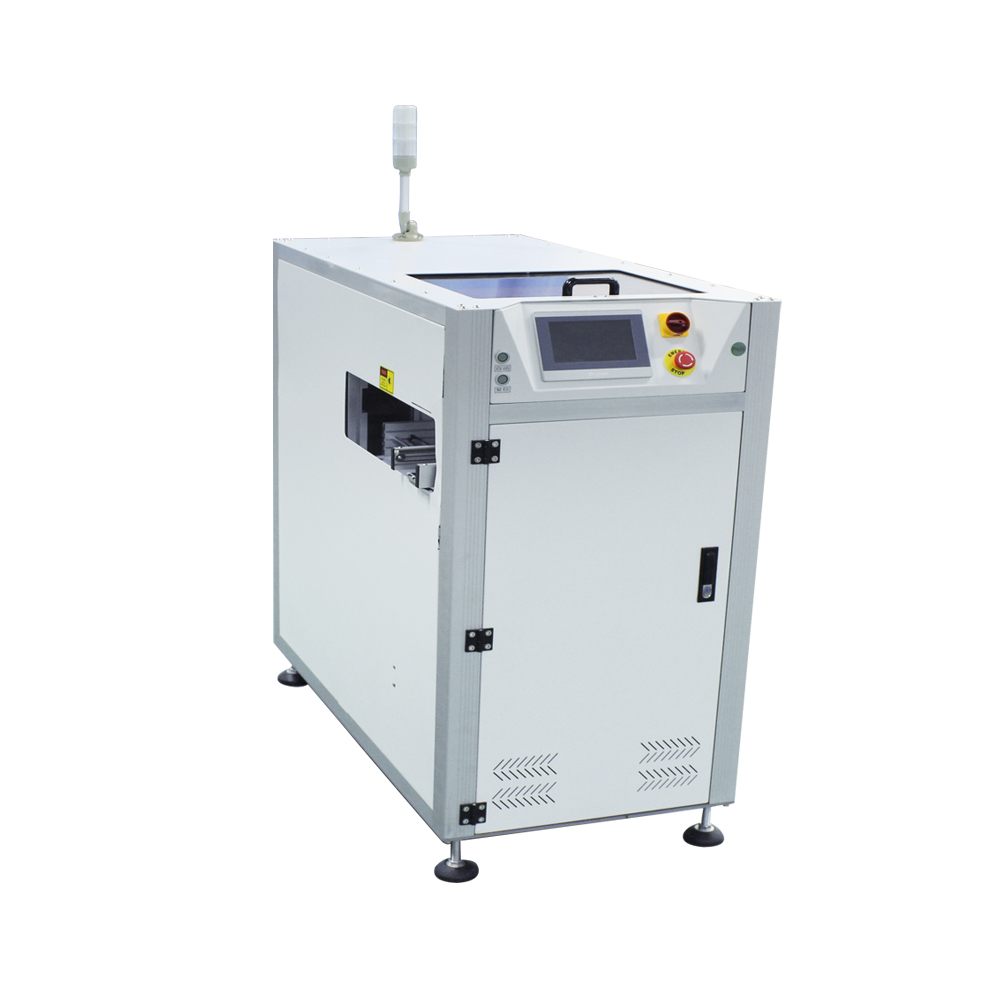

This equipment is used for PCB bare board material operation on the production lineFeatures
Features
1.Applies to the PLC + touch screen control, easy to operate.
2.Enclosed design ensures highest leavel of safety.
3.Adjust the position of the suction nozzle to ensure the clamping of PCB.
4.Smooth and parallel width adjustment (lead screw)
5.Smooth and accurate translation (stepping motor)
6.Minimize the transmission gap between conveyors.
7.With SMEMA signal.
