Measuring Range: 0.05 to 150m (0.15ft to 492.0ft)
Measuring Accuracy: Typically ±1.5mm (±0.06in)
Smallest Unit Displayed: 1mm
Measuring Units: m, in, ft
Laser Class: Class II 635nm, <1mW
Range of Bluetooth: 10m
Compass Measuring Range: 0-360°
Compass Measuring Accuracy: ±2°
Tilt Sensor Measuring Range: ±90°
Tilt Sensor Measuring Accuracy: ±0.5°
Dust Protect/Splash Proof: IP54
History Measurement Records: 99
Keyboard Type: Super Soft-touch (Long Life)
Operating Temperature: -10℃ to 50℃ (14℉ to 122℉)
Storage Temperature: -20℃ to 70℃ (4℉ to 158℉)
Battery Life: Up to 5,000 Measurements
Auto Laser Switch-off: After 0.5min
Auto Instrument Switch-off: After 3min
Size(HxWxD): 138mm x 55mm x 35mm
Weight: 165g
Accessories:
2 x 1.5V AAA batteries and gift box with carrying case.
Datasheet

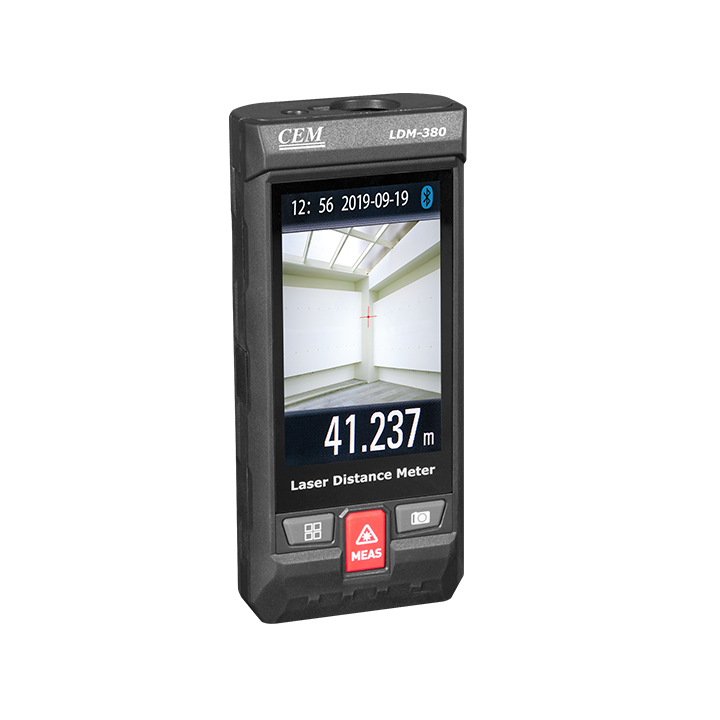

Features | LDM-300 | LDM-350 | LDM-380 |
3.5" TFT Color LCD Display | * | * | |
Built-in Camera | * | ||
Images (JPEG) & Video (3GP) | * | ||
Micro SD Memory Card & Datalogger Function | * | ||
Electrical Compass | * | * | |
Angle Measurement Using Tilt Sensor (±90°) | * | * | |
Area, Volume Calculations | * | * | * |
Indirect Measurement Using Pythagoras | * | * | * |
Addition/Subtraction | * | * | * |
Continuous Measurement | * | * | * |
Min/Max Distance Tracking | * | * | * |
Timer (self-triggering) | * | * | * |
Laser Continuous | * | * | * |
Stake-out Function | * | * | * |
Display Illumination and Multi-line Display | * | * | * |
Buzzer Indication | * | * | * |
Multifunctional Endpiece | * | * | * |
Bluetooth Interface | * | * | * |
Meterbox iLDM & Cloud Service | * | * | * |
