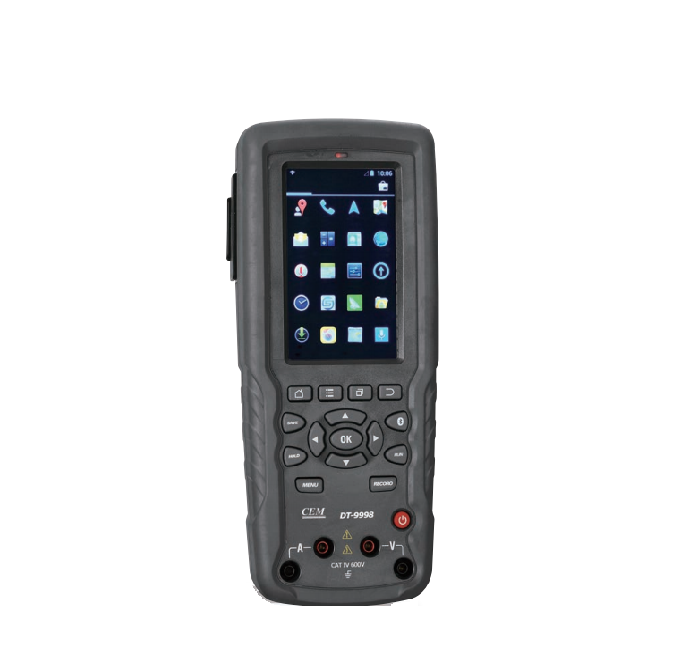

CEM DT-9998 Professional True RMS Industrial Multimeter / Oscilloscope (True RMS, AC/DC 1000V)

Oscilloscope Functions

Display Size: 3.5" color LCD 320 x 240 pixels

Bandwidth: 20MHz

Real time sample rate: 50MS/s

Risetime: 10ns

Channel: 1

Vertical Sensitivity: 50mV/div ~ 200V/div

Vertical Resolution: 8bits

Trigger Mode: Free Run, falling edge, rising edge

Trigger Source: Internal

Trigger Coupling: AC/DC

Input Impedance: 1MΩ/15pF

Max Input Volatage: 1000Vp-p

Cursor Measurement: Voltage and time/ Frequency

True RMS Multimeter Functions

Voltage DC Range; Resolution; Accuracy: 1000V; 1μV; ±(0.025% + 5)

Voltage AC Range; Resolution; Accuracy: 1000V; 1μV; ±(0.4% + 40)

Current DC Range; Resolution; Accuracy: 10A; 0.01μA; ±(0.15% + 2)

Current AC Range; Resolution; Accuracy: 10A; 0.01μA; ±(0.6% + 5)

Temperature Range; Resolution; Accuracy: -200°C ~ 1350°C; 0.1°C; ±(1.0% + 2.5°C)

Resistance Range; Resolution; Accuracy: 50MΩ; 0.01Ω; ±(0.05% + 2)

Capacitance Range; Resolution; Accuracy: 10mF; 0.001nF; ±(1.0% + 5)

Frequency Range; Resolution; Accuracy: 10MHz; 0.01Hz; ±(0.005% + 1)

Diode and Continuity: Yes

PC Interface: Bluetooth

Power Supply 6 hours Li-ion rechargeable battery; AC Adaptor/charger

Size (HxWxD):220mm x 96mm x 60mm

Weight: 631g

Accessories:

Test leads, Li-ion battery, Type K temperature probe, Bluetooth and Software, gift box with carrying case

Datasheet
