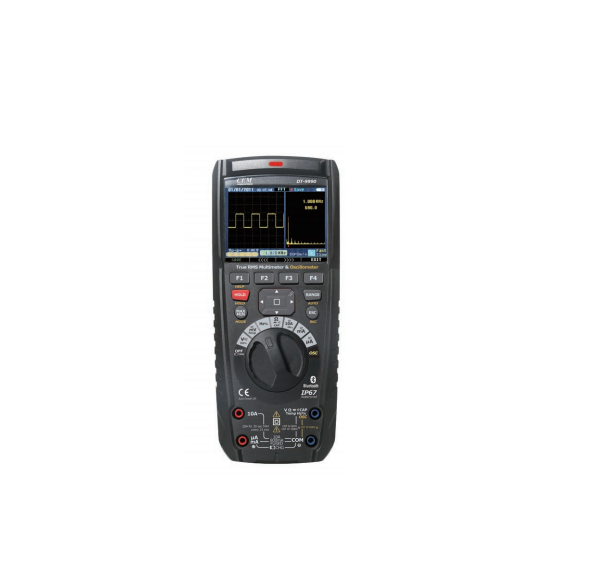

CEM DT-9990 Professional True RMS Industrial Multimeter / Oscilloscope (True RMS, AC/DC 1000V)

Oscilloscope Functions

Display Size: 3.5" color LCD 320 x 240 pixels

Bandwidth: 10MHz

Real time sample rate: 50MS/s

Risetime: 10ns

Channel: 1

Vertical Sensitivity: 50mV/div ~ 200V/div

Vertical Resolution: 8bits

Trigger Mode: Free Run, falling edge, rising edge

Input Impedance: 1MΩ/15pF

Max Input Volatage: 1000Vp-p

Cursor Measurement: Voltage and time/ Frequency

True RMS Multimeter Functions

Voltage DC: 1000V; 1μV; ±(0.025% + 5)

Voltage AC: 1000V; 1μV; ±(0.3% +25)

Current DC: 10A; 0.01μA; ±(0.15% + 2)

Current AC: 10A; 0.01μA; ±(0.6% + 5)

Temperature: -50°C ~ 1000°C; 0.1°C; ±(1.0% + 2.5°žC)

Resistance: 50MΩ; 0.01Ω; ±(0.05% + 2)

Capacitance: 10mF; 0.001nF; ±(2.0%+40)

Frequency: 10MHz; 0.01Hz; ±(0.01%+10)

Diode and Continuity: Yes

Bluetooth Interface: Smartphone/PC

Power Supply: 6 hours Li-ion rechargeable battery; AC Adaptor

Size(HxWxD):220mm x 91mm x 56mm

Weight:630g

Accessories:

Test leads, Li-ion battery, Type K temperature probe, Bluetooth and Software, gift box with carrying case
