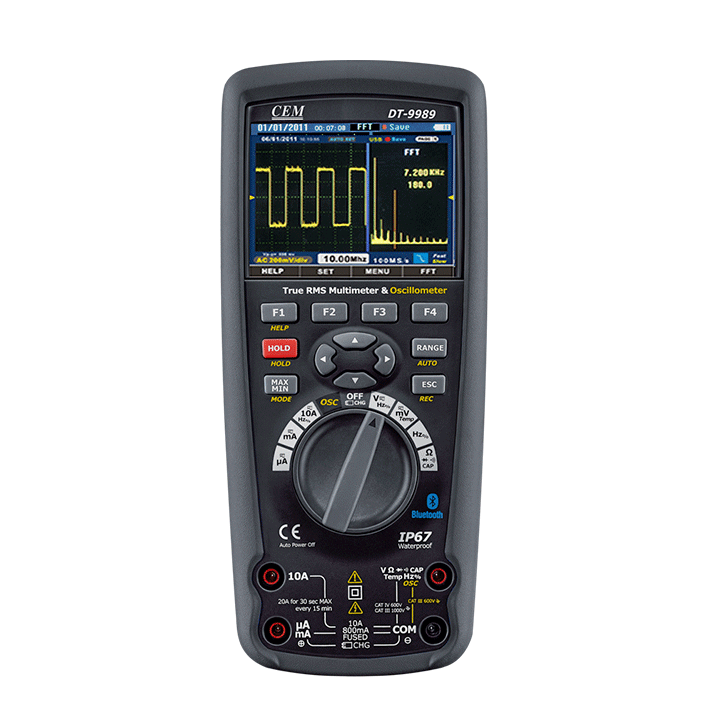

CEM DT-9989 Professional T-RMS Industrial Multimeter (True RMS, DC/AC 1000V, 10A)

Oscilloscope Functions

Display Size: 3.5" color LCD; 320 x 240 pixels

Bandwidth: 20MHz

Real time sample rate: 50MS/s

Risetime: 10ns

Channels: 1

Vertical Sensitivity: 50mV to 200V/div

Vertical Resolution: 8 bits

Trigger Mode: Free Run, falling edge, rising edge

Trigger Source: Internal

Trigger Coupling: AC/DC

Input impedance: 1MΩ/200pF

Max Input Volatage: 1000V(peak)

Cursor Measurement: Voltage and time/ Frequency

True RMS Multimeter Functions

Voltage DC: 1000V / 1μV / ±(0.025% + 5)

Voltage AC: 1000V / 1μV / ±(0.4% + 40)

Current DC: 10A / 0.01μA / ±(0.15% + 2)

Current AC:10A/0.01μA / ±(0.6% + 5)

Temperature:-50ºC to 1000ºC/0.1ºC / ±(1.0% + 2.5ºC)

Resistance:50MΩ/0.01Ω / ±(0.05% + 2)

Capacitance:10mF/0.001nF / ±(1.0% + 5)

Frequency: 10MHz / 0.01Hz / ±(0.005% + 1)

Diode and Continuity: Yes

PC Interface: Bluetooth

Power Supply: 6 hours Li-ion rechargeable battery; AC daptor/charger

Size (H x W x D): 220mm x 96mm x 60mm

Weight: 631g
