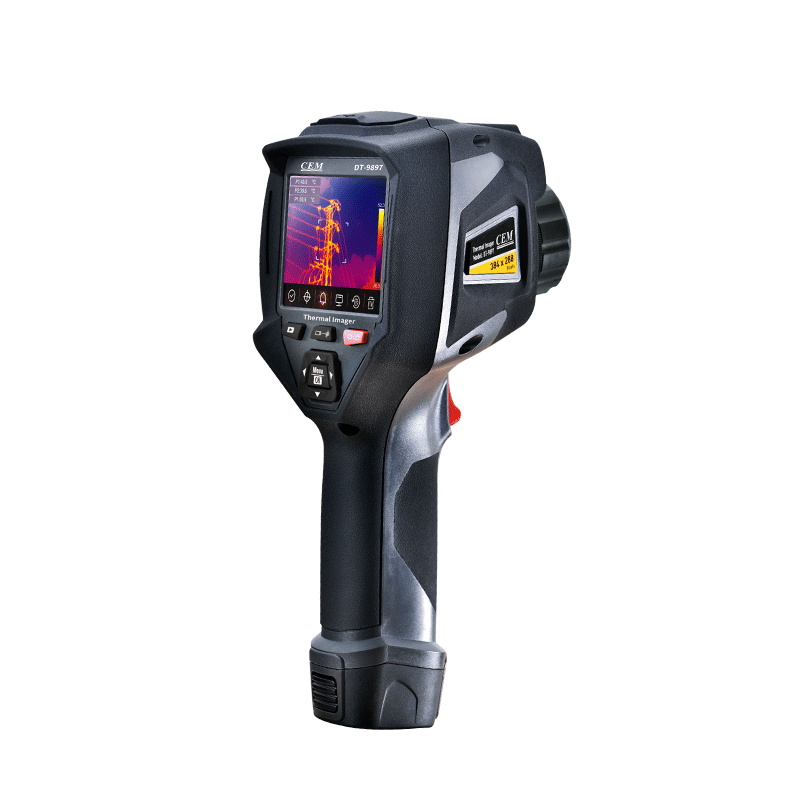

CEM DT-9896 High Performance Thermal imager (-20°C~650°C; ±2°C)

Image presentation

Display: 3.5" 640x480TFT , capacitive touch screen

Image modes: IR image, visual image, picture in picture, AUF,Distance

Color palettes: IRON, Rainbow, Grey, Grey Inverted, Brown, Blue-red, hot-cold, Feather, Above alarm, Below alarm, Zone alarm, vision zone

Measurement

Object temperature range: Low range: –20°C to +150°C (–4°F to +302°F)

High range: 0°C to +650°C (+32°F to +1202°F)

Extend to 1500°C (2732°F) (optional)

Accuracy: ±2°C (±3.6°F) or ±2% of reading

Measurement analysis

Emissivity adjustable: 0.01~1.0 Adjustable

Automatic hot /cold detection: Auto hot or cold spotmeter marks line analyse,area analyse

Set-up

Laser / floodlight: < class2 / white LED floodlight

Language selection: English, Chinese, French, German, Spanish

Storage of videos/images

Storage media: 16G bytes Micro SD card

Video storage format: Standard MPEG-4, 640x480@30fps, on memory card > 60 minutes

Digital camera

Built-in visible light digital camera: 5M Pixels

Data communication interfaces

USB interfaces: USB-micro, data transform between camera and PC remote control, live video

Wi-Fi connectivity: Wi-Fi connectivity allows to send images and data to mobile devices remote control, live video

Power system

Battery: Lithium polymer battery, 4 hours operating time

Input voltage: DC 5V

Charging system: In camera (AC adapter)

Accessories:

Carrying case, 7.5mm lens, Sun Visor, Tripod base, AC charger/Power supply, Battery, software CD-ROM, Handstrap, micro SD card, USB

cable & RCA cable, Gift box.

Datasheet
