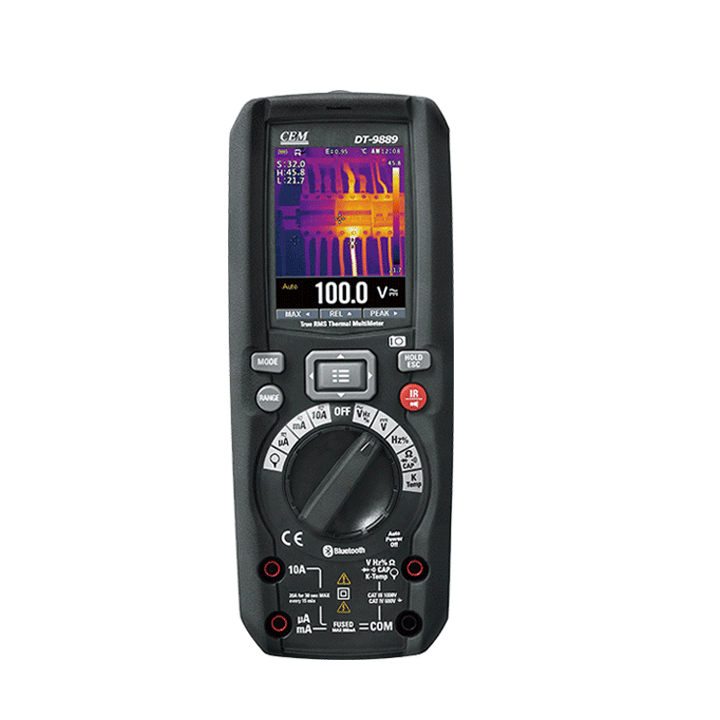

CEM DT-9889 2 in 1 InfraRed Thermometer & Non-contact AC Voltage (True RMS, AC/DC 1000V, 10A)

Built-in Thermal Imager design quickly identifies hot spots without contact

Thermal Imager

IR Resolution: 80x80 pixels

Field of view(FOV): 21° x 21°

Thermal sensitivity/NETD: < 0.08°C /80mK

Image frequency: 50Hz

Object temperature range: range: –20 to 260°C (–4 to 500°F)

Spectral range: 8–14 μm

Color palettes: IRON/Rainbow/Grey/Grey Inverted

Accuracy: ±2°C (±3.6°F) or ±2% of reading

True RMS Multimeter Functions

Function: Maximum - Max, resolution - Accuracy

Voltage DC1000V ; 100mV ; ±(0.1%+3)

Voltage AC1000V ; 100mV ; ±(0.9%+20)

Current DC10A ; 0.1μA ; ±(0.9%+2)

Current AC10A ; 0.1μA ; ±(1.2%+5)

Resistance60MΩ ; 0.1Ω ; ±(1.0%+2)

Capacitance6000μF ; 0.01nF ; ±(2.5%+5)

Frequency10MHz ; 0.01Hz ; ±(0.5%+1)

Diode and Continuity: Yes

PC Interface: Bluetooth

Power Supply: 8 hours Li-ion rechargeable battery; AC Adaptor/charger

Size(HxWxD): 195mm x 80mm x 58mm

Weight: 540g

Accessories

Test leads, Li-ion batteries, Type K temperature probe, Software, gift box with carrying case.

Datasheet
