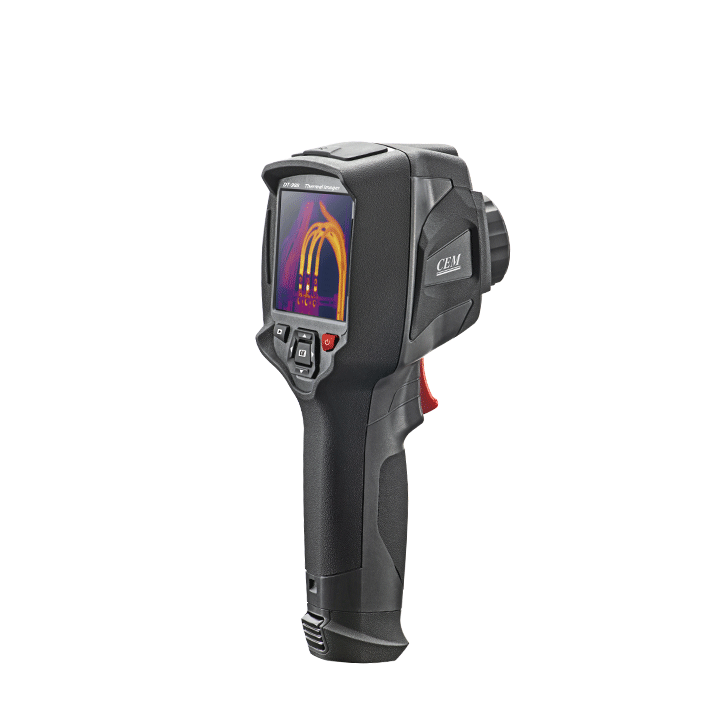

CEM DT-988 High Performance Thermal imager (-20°C~650°C, 160x120, 1.88mrad)

Imaging and optical data

IR resolution: 160x120

Field of view (FOV): 20.7°x15.6°

Spatial resolution (IFOV): 1.88mrad

Thermal sensitivity/NETD: < 0.05°C @ +30°C (+86°F) / 50 mK

Image frequency: 50Hz

Focus: Manual

Image presentation

Display: 3.5" 640x480 touch screen

Image modes: IR image, visual image, picture in picture, AUF

Color palettes: IRON, Rainbow, Grey, Grey Inverted, Brown, Blue-red, hot-cold, Feather

Measurement

Object temperature range: Low range: –20°C to +150°C (–4°F to +302°F)

High range: 0°C to +650°C (+32°F to +1202°F)

Accuracy: ±2°C (±3.6°F) or ±2% of reading

Set-up

Set-up commands: Local adaptation of units, language, date and time formats, information of camera

Language selection: English, Chinese, French, German, Spanish

Storage of videos/images

Storage media: 4Gbytes eMMC

Video storage format: Standard MPEG-4, 640x480@30fps, on memory card > 60 minutes

Digital camera

Built-in visible light digital camera: 2M Pixels

Data communication interfaces

USB interfaces: USB-micro, data transform between camera and PC

Remote control, live video

Wi-Fi connectivity: Wi-Fi connectivity allows to send images and data to mobile devices remote control,live video

Power system

Battery: Lithium polymer battery, 4 hours operating time

Input voltage: DC 5V

Charging system: In camera (AC adapter)

Accessories:

Hard transport case, 7.5mm lens, Tripod base, AC charger/Power supply, Battery, software CD-ROM, Handstrap, micro SD card, USB cable &

RCA cable, Gift box
