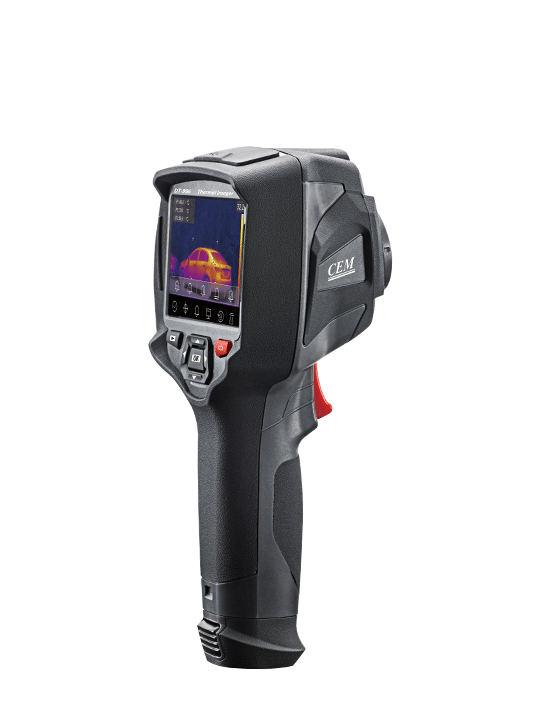

CEM DT-983 High Performance Thermal Imager (-20°C~330°C, 80x80pixels, 4.53mrad)

Imaging and optical data

IR resolution: 80x80

Field of view (FOV): 21°x21°

Spatial resolution (IFOV): 4.53mrad

Thermal sensitivity/NETD: < 0.05°C @ +30°C/(+86 o F) < 0.1°C/100mK

Image frequency: 9Hz

Focus: Focus free

Image presentation

Display: 3.5" 640x480 touch screen

Image modes: IR image, visual image, picture in picture, AUF

Color palettes: IRON, Rainbow, Grey, Grey Inverted, Brown, Blue-red, hot-cold, Feather

Measurement

Object temperature range: Low range: –20°C to +330°C (–4°F to +302°F)

Accuracy: ±5°C (±3.6°F) or ±3% of reading

Measurement analysis

Emissivity adjustable: 0.01~1.0 Adjustable

Automatic hot /cold detection: Auto hot or cold spotmeter marks

Set-up

Laser/floodlight: < class2 / white LED floodlight

Language selection: English, Chinese, French, German, Spanish

Storage of videos/images

Storage media: 4Gbytes eMMC

Video storage format: Standard MPEG-4, 640x480@30fps, on memory card > 60 minutes

Image storage format: Standard JPEG, including measurement data, on memory card > 1000 pictures

Storage mode: IR/visual images; simultaneous storage of IR and visual images

Digital camera

Built-in visible light digital camera: 2M Pixels

Data communication interfaces

USB interfaces: USB-micro, data transform between camera and PC

Remote control, live video

Wi-Fi connectivity: Wi-Fi connectivity allows to send images and data to mobile devices remote control,live video

Power system

Battery: Lithium polymer battery, 4 hours operating time

Input voltage: DC 5V

Charging system: In camera (AC adapter)

Power management: Automatic shutdown and sleep mode (user selectable)

Accessories:

Hard transport case, 7.5mm lens, Tripod base, AC charger/Power supply, Battery, software CD-ROM, Handstrap, micro SD card, USB cable & RCA cable, Gift box.
