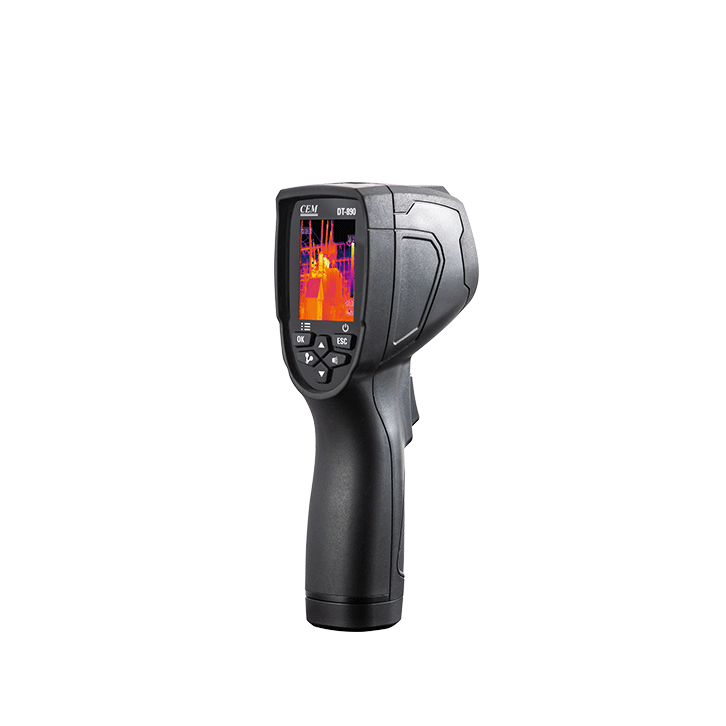

CEM DT-890 Thermal Imager (-20°C~450°C, 4.53mrad, 120x90pixels)

Imaging and optical data

Field of view (FOV): 21x21

Spatial resolution (IFOV): 4.53mrad

NETD: <0.1 o C@30 o C(80 o F)/100mK

Image Frequency: 50Hz

Focus Mode: Focus free

Focal Plane Array(FPA)/Spectral Range: Uncooled microbolometer/8-14um

IR Resolution: 120x90

Image presentation

Display: 2" TFT LCD, 240x320 pixels

Color palettes: IRON/Rainbow/Grey/Grey Inverted

Measurement

Object temperature range: -20°C to 450°C (-4°F to 842°F)

Accuracy: ±2°C(+/- 3.6°F) or ±2% of reading

Measurement analysis

Spotmeter: Center Spot

Automatic Hot/Cold Detection: Auto hot or cold markers

Emissivity Correction: 8 pre-define level and Variable from 0.01 to 1.0

Storage of Images

Storage Media: 8 Gbytes Micro SD card

Image Storage format: Bitmap(BMP),including measurement data.

Data communication interfaces

Interfaces: USB-micro, Data transform between camera and PC

Bluetooth: Yes

Power system

Battery: Li-ion battery, 8 hours operting time

Input Voltage: DC 5V

Charging System: In camera(AC adapter)

Power Management: Automatic shutdown

Environmental Data

Operating Temperature Range: -20 ℃ to 50 ℃ (-4 ℉ to 122℉)

Storage Temperature Range: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)

Humidity(operating and storage): 10% to 90%

Drop test: 2m

Accessories:

Lens, Battery, software CD-ROM, Wrist strap, micro SD card, Adaptor, USB cable, Gift box.
