CEM DT-870YS Thermal Imager (-20°C~380°C,±2°C,240x320px)

Imaging and Optical Data

Field of View: 21x21°

Spatial Resolution: 4.53mrad

NETD: <0.1°C@30°C(80°F)/100mK < 0.08°C /80mK

Image Frequency: 50Hz

Focus Mode: Focus free

Focal Plane Array(FPA): Spectral Range Uncooled microbolometer/8-14um

IR Resolution: 80x80 pixels

Image Presentation

Display: 2" TFT LCD, 240x320 pixels

Color Palettes IRON, RainBow, Grey, GreyInverted

Measurement

Object Temperature Range: -20°C ~ 380°C (-4°F ~ 716°F)

Accuracy: ±2°C(±3.6°F) or ±2% of reading

Screening temperature range: 32~42°C

Temperature measurement accuracy: ±0.5°C

Test area: 1 meter distance: 35cmx35cm, 2 meters distance: 70cmx70cm

Full-fi eld high-temperature tracking: Red crosshair mark

High temperature alarm setting: Default 37.3°C

High-temperature tracking: Red crosshair mark

High temperature alarm tone: Yes

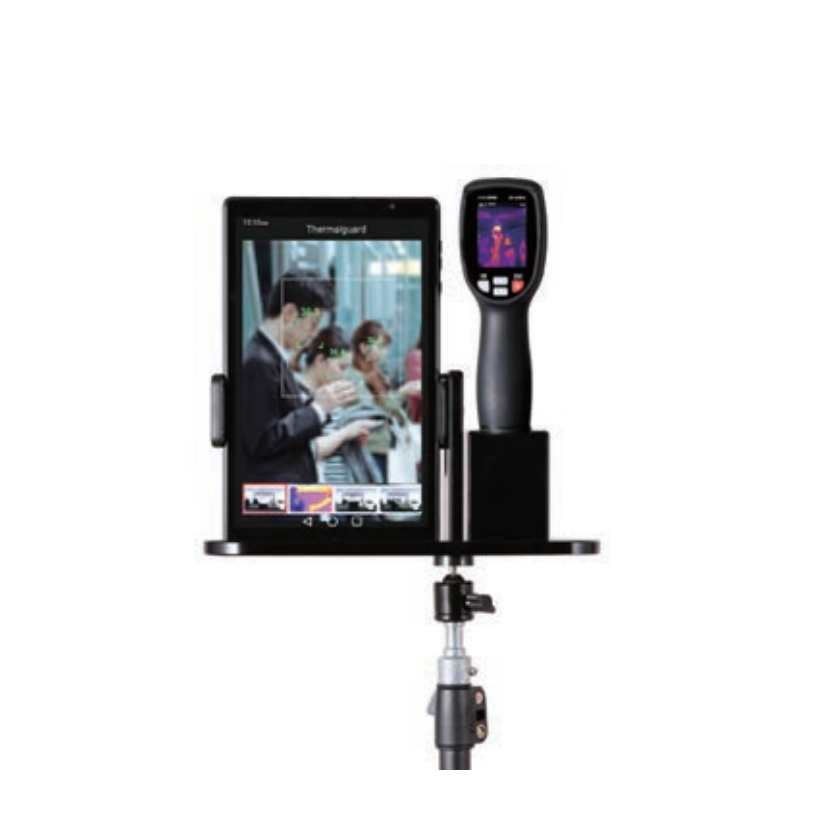

Tablet: 10in display,8M visible camera,Android sysstem (870YS)

Face detection: 5 face detection at the same time, hot spot track in face area and High temperature alarm (870YS)

Face capture: Yes

Measurement Analysis

Spotmeter: Center Spot

Automatic Hot/Cold Detection: Auto hot or cold markers

Emissivity Correction: 8 pre-define level and Variable from 0.01 to 1.0

Storage of Images

Image Storage format: Bitmap(BMP),including measurement data

Data Communication Interfaces

Bluetooth: Yes

Power System

Charging System: In camera(AC adapter)

Power Management: Automatic shutdown

Battery/ Input Voltage: Li-ion battery, 4 hours operating time/ DC 5V

Size(HxWxD):175mm x 58mm x 70mm

Weight: 450g

Accessories: Battery, APP software, Adaptor, Carrying case, USB cable, Gift box
