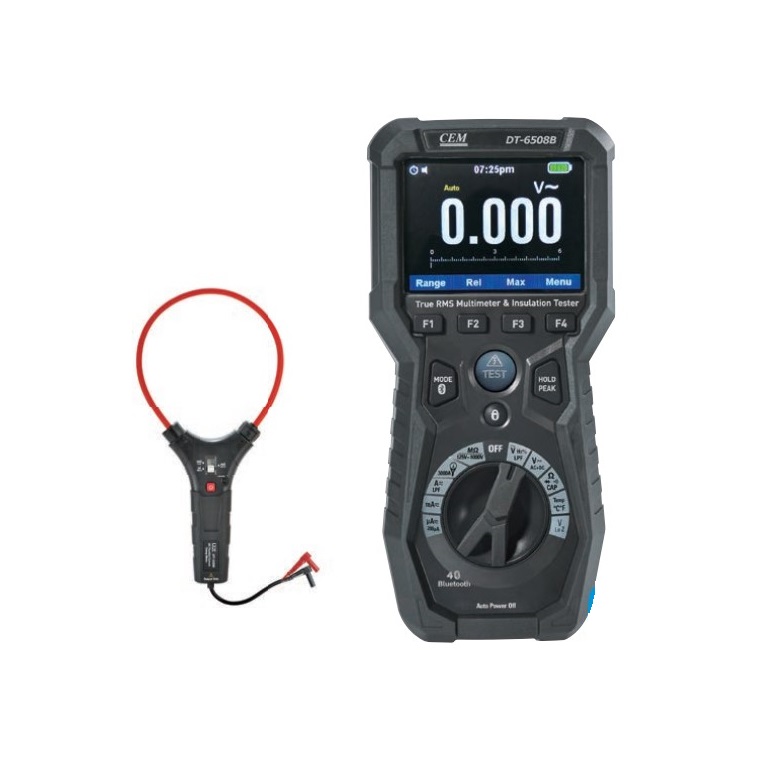

CEM DT-6508B Professional Insulation Tester (1000V,10A, 0,125~6000MΩ)

True RMS Multimeter Functions

DCV Range / Resolution / Accuracy: 1000V / 1mV / ±(0,5%+5)

Dải đo / Độ phân giải / Độ chính xác ACV Range / Resolution / Accuracy: 1000V / 1mV / ±(1,0%+5)

Low Z ACV Range / Resolution / Accuracy: 600V / 1mV / ±(3.0%+40)

DCA Range / Resolution / Accuracy: 10A / 0.1μA / ±(0.9%+5)

ACA Range / Resolution / Accuracy: 10A / 0,1μA / ±(1,2%+5)

ACA 3000A Range / Resolution / Accuracy: 100mV / 1A / 1A / ±(2,5%+10)

Temperature Range / Resolution / Accuracy: -20°C~1000°C / 0,1/1°C / ±(30%+5°C)

Resistance Range / Resolution / Accuracy: 60MΩ / 0.1Ω / ±(1.5%+5)

Capacitance Range / Resolution / Accuracy: 6000μF / 10pF / ±(3.0%+5)

Frequency Range / Resolution / Accuracy: 9.999kHz / 1Hz / ±(0.09%+5)

Diode and Continuity: Yes

Power Supply: 6x1.5V AA battery

Insulation Tester

Terminal Voltage: Range / Resolution / Accuracy / Test Current

125V (0%~20%): 0,125~6000MΩ / 0,001MΩ / ±(2%+10) / 1mA @load125kΩ

250V (0%~20%): 0,250~6000MΩ / 0,001MΩ / ±(2%+10) / 1mA @load250kΩ

500V (0%~20%): 0,500~6000MΩ / 0,001MΩ / ±(2%+10) / 1mA @load500kΩ

1000V (0%~20%): 1.000~6000MΩ / 0,001MΩ / ±(2%+10) / 1mA @load1MΩ

Accessories: Test leads, 6 x 1.5V “AA” batteries, Type K temperature probe, Software, gift box with carrying case.
