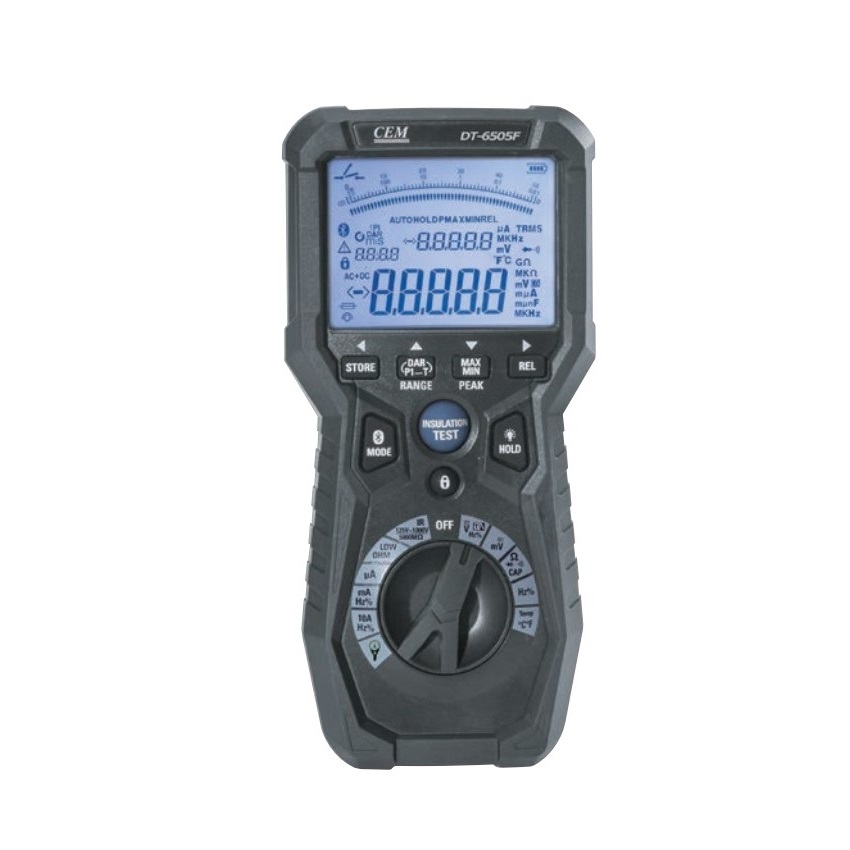

CEM DT-6505F Insulation Tester & High Resolution Micro-ohm Meter with True RMS Multimeter (1000V, 10A)

Multimeter

Function: Max Range / Max Resolution / Basic Accuracy

DCV: 1000V / 0.1V / ±(0.1% + 4)

ACV: 1000V / 0.1V / ±(1.0% + 5)

DCA: 10A / 0.001A / ±(1.0% + 3)

ACA: 10A / 0.001A / ±(1.5% + 3)

Resistance: 50MΩ / 0.01Ω / ±(1.0% + 4)

Capacitance: 5000µF / 0.1µF / ±(3.5% + 10)

Frequency: 50MHz / 0.001MHz / ±(0.1% + 1)

Duty Cycle: 0.1~99.90% / 0.01% / ±(1.0% + 2)

Temperature

-50 ~ 1200℃ / 0.1℃ / ±(1.0% + 2.5°C)

-58 ~ 2192℉ / 0.1℉ / ±(1.0% + 4.5°F)

Insulation Tester

Terminal Voltage: Range / Max Resolution / Accuracy / Test Current

125V(0%～10%): 0.125 ~ 5000MΩ / 0.001MΩ / ±(2%+10) / 1mA @load125kΩ

250V(0%～10%): 0.250～5000MΩ / 0.001MΩ / ±(2%+10) / 1mA @load250kΩ

500V(0%～10%): 0.500～5000MΩ / 0.001MΩ / ±(2%+10) / 1mA @load1500kΩ

1000V(0%～0%): 1.000～5000MΩ / 0.001MΩ / ±(3%+10) / 1mA @load1MΩ

Low Ohm Meter

Range / Resolution / Accuracy / Max.open Circuit Voltage

0.000～5.000Ω / 0.001Ω / ±(1.5% + 30) / 5 ±1V

5.00 ~ 50.00Ω / 0.01Ω / ±(1.5% + 3) / 5 ±1V

50.0 ~ 500.0Ω / 0.1Ω / ±(1.5% + 3) / 5±1V

500 ~ 2000Ω / 1Ω / ±(1.5% + 5) / 5±1V

Size (HxWxD): 97mm x 210mm x 68mm

Weight: 634g

Accessories: Test leads, 6 x1.5V“AAA” batteries, Type K temperature probe and Software, gift box with carrying case.
