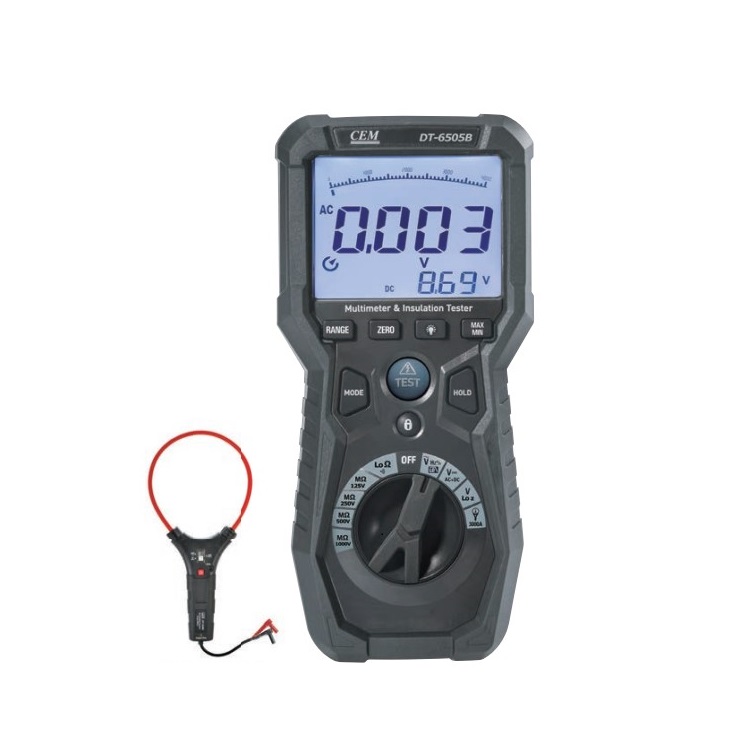

CEM DT-6505B Insulation Tester with True RMS Multimeter (1000V, 3000A, 0.125~4000MΩ)

Multimeter

Function: Max. Range / Max. Resolution / Basic Accuracy

DCV: 1000V / 0.1V / ±(0.5%+5)

ACV: 1000V / 0.1V / ±(1.0%+5)

Low Z ACV: 600V / 1mV / ±(3.0% + 40)

ACV+DCV: 1000V / 0.1V / ±(3.0% + 40)

ACA 3000A: 3000A / 0.01A / ±(2.5%+10)

Temperature: -20~1000°C / 0.1°C / ±(1.0% + 2.5°C)

Insulation Tester

Terminal Voltage: Range / Max. Resolution / Accuracy / Test Current

125V(0%~10%): 0.125~4000MΩ / 0.001MΩ / ±(2%+10) / 1mA @load125kΩ

250V(0%~10%): 0.250~4000MΩ / 0.001MΩ;±(2%+10) / 1mA @load250kΩ

500V(0%~10%): 0.500~4000MΩ / 0.001MΩ / ±(2%+10) / 1mA @load1500kΩ

1000V(0% ~0%): 1.000~4000MΩ / 0.001MΩ / ±(2%+10) / 1mA @load1MΩ

Low Ohm Meter

Resistance Range / Max. Resolution / Accuracy / Max. open Circuit Voltage:

0-400Ω / 0.001Ω / ±(1.0% + 5) / >5V

400Ω~4KΩ / 0.01Ω / ±(1.2% + 5) / >5V

Accessories: Test leads, 6x1.5V“AA” batteries, Type K temperature probe and Software, gift box with carrying case.
