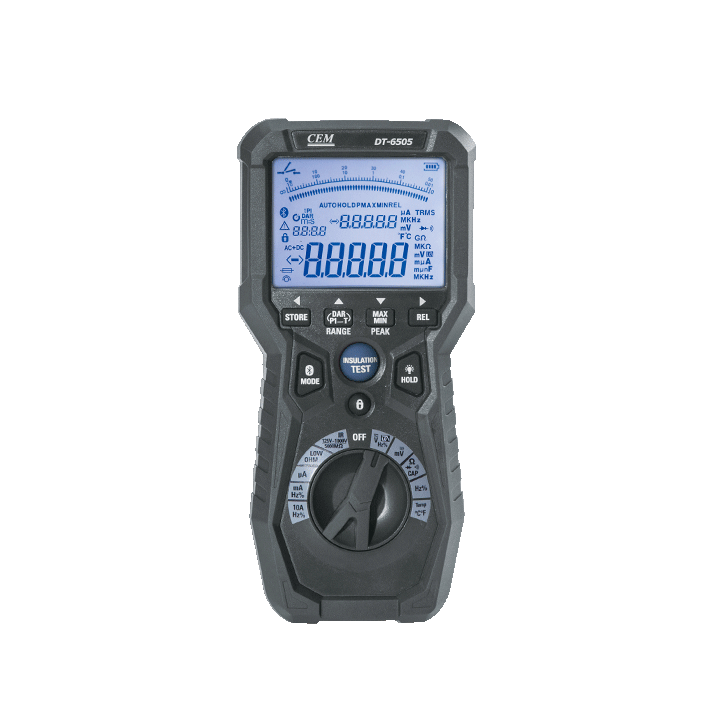

CEM DT-6505 Insulation Tester & High Resolution Micro-ohm Meter with True RMS Multimeter (True RMS, DC/AC-1000V, 60Ω)

Multimeter

Function: Max. Range ; Max. Resolution ; Basic Accuracy

DC Voltage: 1000V ; 0.1V ; ±(0.06% reading ﹢4digits)

AC Voltage: 1000V ; 0.1V ; ±(1.0% reading ﹢30digits)

DC Current: 10A ; 0.001A ; ±(1.0% reading ﹢3digits)

AC Current: 10A ; 0.001A ; ±(1.5% reading ﹢30digits)

Resistance: 40MΩ ; 0.0001MΩ ; ±(0.3% reading ﹢4digits)

Frequency: 40MHz ; 0.01MHz ; ±(0.1% reading ﹢1digits)

Duty Cycle: 0.1 to 99.9% ; 0.01% ; ±(1.2% reading ﹢2digits)

Temperature

﹣50 to 1200℃ ; 0.1℃ ; ±(1.0% reading ﹢2.5℃)

﹣58 to 2192℉ ; 0.1℉ ; ±(1.0% reading ﹢4.5℉)

4-20 m A: ﹣25 to 125% ; 0.01% ; ±50digits

Insulation Tester

Terminal Voltage ; Range ; Max. Resolution ; Accuracy ; Test Current ; Short circuit current

125V(0%～10%) ; 0.125～4000MΩ ; 0.001MΩ±(2%+10) ; 1mA @ load125kΩ ; ≤1mA

250V(0%～10%) ; 0.250～4000MΩ ; 0.001MΩ±(2%+10) ; 1mA @ load250kΩ ; ≤1mA

500V(0%～10%) ; 0.500～4000MΩ ; 0.001MΩ±(2%+10) ; 1mA @ load1500kΩ ; ≤1mA

1000V(0%～0%) ; 1.000～4000MΩ ; 0.001MΩ±(3%+10) ; 1mA @ load1MΩ ; ≤1mA

Micro-ohm Meter

Resistance

Range ; Max. Resolution ; Accuracy ; Test Current

60mΩ ; 1μΩ ; ±(0.25%+25μΩ) ; 10A

600mΩ ; 10μΩ ; ±(0.25%+250μΩ) ; 1A

6Ω ; 100μΩ ; ±(0.25%+2.5mΩ) ; 100mA

60Ω ; 1mΩ ; ±(0.25%+25mΩ) ; 10mA

Size(HxWxD): 217mm x 110mm x 48mm

Weight: 631g

Accessories

Test leads, 6x1.5V“AAA” batteries, Type K temperature probe and Software, gift box with carrying case.
