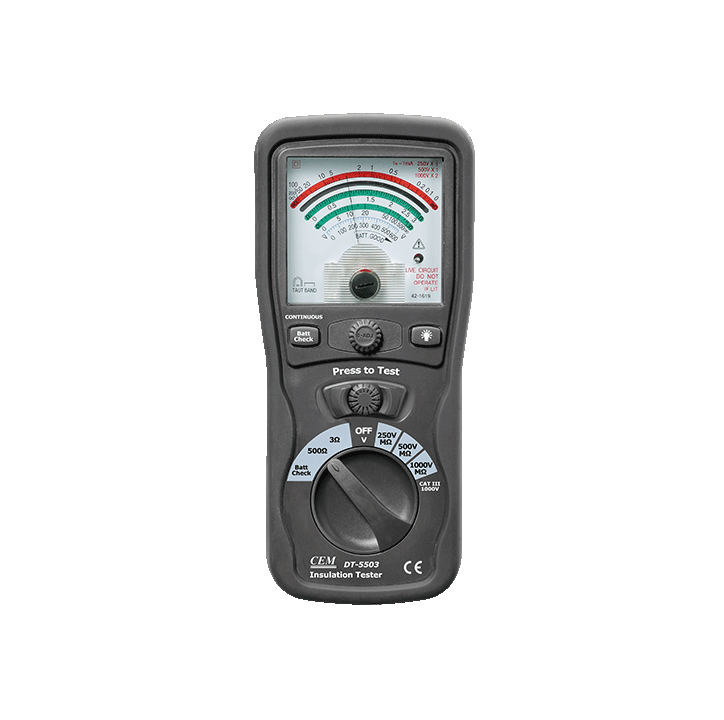

CEM DT-5503 Analogue Insulation Tester (AC-600V, DC-1000V, 0-400MΩ)

Insulation Test

DC Test Voltage: 250V 500V 1000V

Measuring Ranges (Mid-Scale Value): 0-100MΩ(1MΩ);0-200MΩ(2MΩ);0-400MΩ(4MΩ)

Rated Current: 1mA DC+20%, -0%

Output short Circuit Current: 1.3mA DC approx

Accuracy Guaranteed Ranges: 0.05-10MΩ ±5%; 0.1-20 Ω ±5%; 0.2 -40MΩ ±5%;

Accuracy: ±7% of Scale length at ranges other than above ranges

Continuity Test Ranges

Accuracy: ±1.5% of Scale Length

Open Circuit Voltage Output: 4.1VDC (Approx)

Short Circuit Current Output: 210mA Min

AC Voltage Warning

AC Voltage Range: 0-600V AC for 30 seconds

Accuracy: ±5% of Scale Length

Input Impedance: 1.2MΩ

General

Withstand Voltage: 7400V AC 50Hz or 60Hz for one minute between electrical circuits and housing case

Safety Standards: IEC 61010-1 CAT III

Size (H x W x D): 200mm x 92mm x 50mm

Weight: 546g

Accessories

Test leads, “AA” Battery x 6 and gift box with carrying case.
