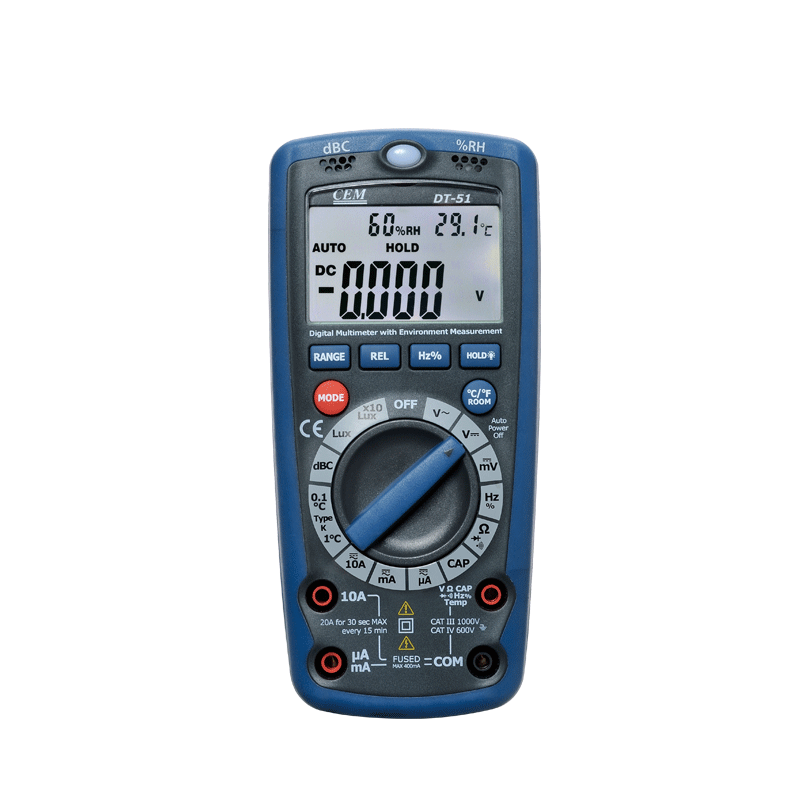

CEM DT-51 Digital Multimeter with Environment Measurement

Max Range / Max. Resolution / Basic Accuracy

Light: 20,000 Lux / 0.1 Lux / ±5%±10d

40,000 Lux / 0.1 Lux / ±5%±10d

Sound: 100dB / 0.1dB / ±3.5dB

Humidity: 95%RH / 0.1%RH / ±3.5%RH

Temperature: -20 ~ 750 ºC / 0.1º up to 400º,1º over 400º / ±3%±3ºC

NCV: 50-1000V

Voltage DC: 600V / 0.1mV / ±0.5%±2d

Voltage AC: 600V / 0.1mV / ±1.2%±10d

Current DC: 10A / 0.1uA / ±1.0%±2d

Current AC: 10A / 0.1uA / ±1.0%±2d

Resistance: 40MΩ / 0.1Ω / ±0.8%±2d

Capacitance: 100uF / 0.01nF / ±3.5%

Frequency: 10MHz / 0.001Hz / ±1.5%

Duty Cycle: 99.90% / 0.10% / ±1.2%

Diode Check: Open voltage 2.8VDC; Test current lmA

Continuity Test: Threshold 30Ω

Size(HxWxD): 170mm x 79mm x 50mm

Weight: 342g

Accessories: 9V battery, Test leads and K-Type temperature probe. Infrared Temperature Probe (Option IR-82)
