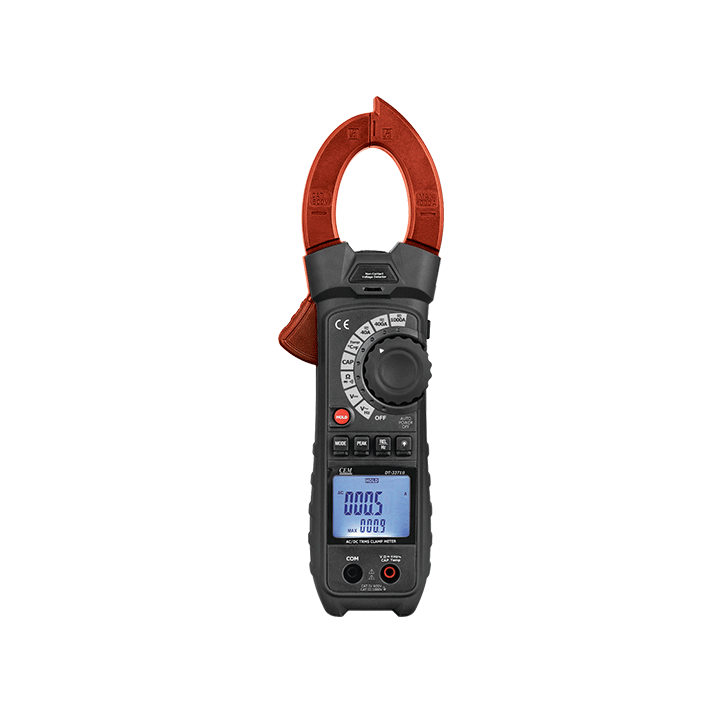

CEM DT-3370B Professional Heavy Duty Autoranging AC/DC Clamp Meters (AC/DC-600V, AC-1000A, AC True RMS)
Function: Max. Range - Basic Accuracy
Voltage DC: 600V ; ±(0.5%+1d)
Voltage AC: 600V ; ±(1.5%+2d)
Current AC: 1000A ; ±(2.5%+4d)
Resistance: 40MΩ ; ±(3.0%+5d)
Temperature: 1000ºC/ 1832ºF ; ±(3.0%+3°C)
Capacitance: 4000uF ; ±(2.5%+5d)
Frequency: 10MHz ; ±(1.2%+2d)
Inrush Current: 1000A ; ±(1.5%+2d)
Size (H x W x D): 230mm x 76mm x 40mm
Weight: 315g
Accessories: Test leads, gift box with carrying case, Temperature probe and 9V battery, Software(3373)
Datasheet
Features | DT-3370B | DT-3371B | DT-3372B | DT-3373 | DT-3376 | DT-3377 |
Current measurement | AC | AC/DC | AC/DC | AC/DC | AC/DC | AC/DC |
LCD display counts | 4000 | 4000 | 6000 | 6000 | 6000 | 50000 |
AC True RMS | * | * | * | * | * | * |
Flashlight | * | * | * | * | * | * |
Data Hold & Peak Hold | * | * | Data Hold | Peak Hold | * | * |
Max/Min |
|
| * | * | * | * |
REL (Zero) Function | * | * | * | * | * | * |
Auto Power Off | * | * | * | * | * | * |
Low battery indication | * | * | * | * | * | * |
Analog Bargragh/61 seg. | */41 seg. | */41 seg. | * | * | * | * / 50 seg. |
1.9'' (48mm) jaw opening | * | * | * | * | * | * |
NCV Detection & flashlight | * | * | * | * | * | * |
Inrush Current |
| * | * | * | ||
3000A ACA Flexible Clamp |
| * |
| |||
Bluetooth interface |
|
| * | |||
Function | Max. Range | Basic Accuracy | DT-3370B | DT-3371B | DT-3372B | DT-3373 | DT-3376 | DT-3377 |
Voltage DC | 1000V | ±(0.5%+1d) | 600V | 600V | * | * | * | * |
Voltage AC | 1000V | ±(1.5%+2d) | 600V | 600V |
| * | * | * |
Current DC | 1000A | ±(2.5%+5d) |
| * |
| * | * | * |
Current AC | 1000A | ±(2.5%+4d) | * | * |
| * | * | * |
Resistance | 60MΩ | ±(3.0%+5d) | 40M | 40M |
| * | * | 50MΩ |
Temperature | 1000ºC/ 1832ºF | ±(3.0%+3°C) | * | * | * | ±(1.0%+3°C) | ±(1.0%+3°C) | * |
Capacitance | 10mF | ±(2.5%+5d) | 4000uF | 4000uF | 6mF | 6000uF | 6000uF | * |
Frequency | 10MHz | ±(1.2%+2d) | * | 10kHz | * | 10MHz | 10MHz | * |
Inrush Current | 1000A | ±(1.5%+2d) | * | * |
|
| * | * |
ACA flexible clamp | 3000A | ±(3.5%+10d) |
|
| * |
| ||
Continuity check | Buzzer sounds less than 50Ω | |||||||
Diode test | Test current 0.3mA | |||||||
