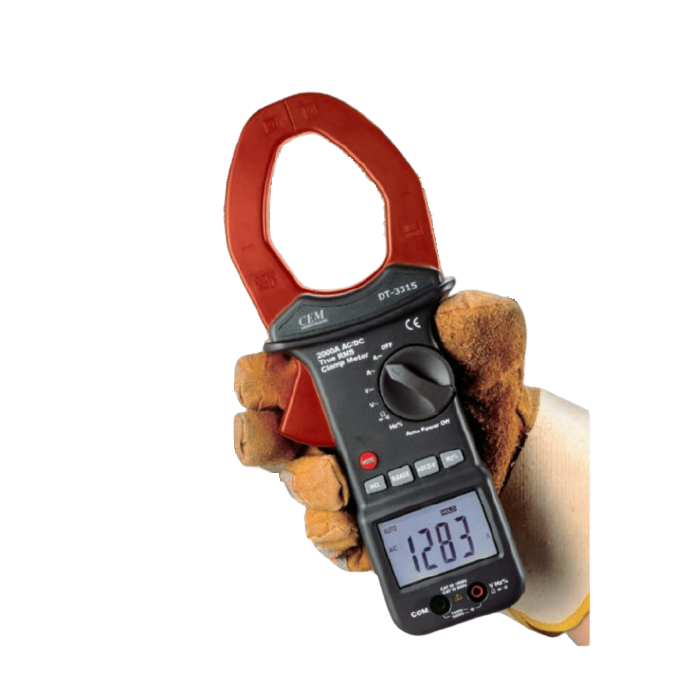

CEM DT-3315 AC/DC Clamp Meters (True RMS, AC/DC 2000A)

AC Current (Max Range; Basic Accuracy; Max.Resolution): 2000A; ±(2.5%+5d); 100mA

DC Current (Max Range; Basic Accuracy; Max.Resolution): 2000A; ±(2.5%+5d); 100mA

AC Voltage (Max Range; Basic Accuracy; Max.Resolution): 1000V; ±(1.0%+4d); 0.1mV

DC Voltage (Max Range; Basic Accuracy; Max.Resolution): 1000V; ±(0.5%+4d); 0.1mV

Resistance (Max Range; Basic Accuracy; Max.Resolution): 40MΩ; ±(1.0%+2d); 0.1Ω

Frequency (Max Range; Basic Accuracy; Max.Resolution): 10MHz; ±(1.2%+2d); 0.001Hz

Clamp jaw opening: 2.16” (55mm)

Size (HxWxD): 270mm x 107mm x 50mm

Weight: 554g

Accessories: Test leads, gift box with carrying case, 9V battery.
