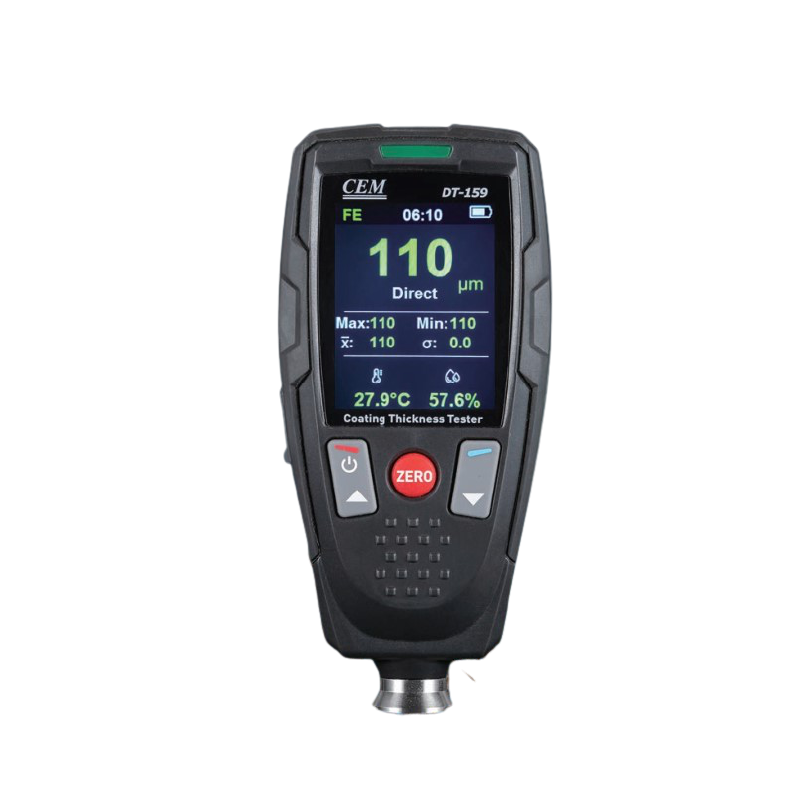

CEM DT-159 Professional Coating Thickness Tester (0~2000um)

Sensor: F / N

Working principle: magnetic induction / Eddy current principle

Measuring range: 0~2000um / 0~2000um

Guaranteed tolerance (of reading): (±2%+2)um / (±2%+2)um

Repeatability: (±1%+1)um / (±1%+1)um

Low range Precision: 0.1um / 0.1um

Minimum curvature radius: 1.5mm / 3mm

Diameter of Minimum area: 7mm / 5mm

Basic critical thickness: 0.5mm / 0.3mm

Temperature range: 0-50°C

Basic accuracy: ±1°C

Humidity range: 0-100%

Basic accuracy: ±3%

Size(HxWxD): 120mm x 60mm x 40mm

Weight: 120g

Accessories:

2x1.5V “AA” batteries, CD, Calibration Iron, Calibration Aluminum, Precision Standard, gift box with carrying case
