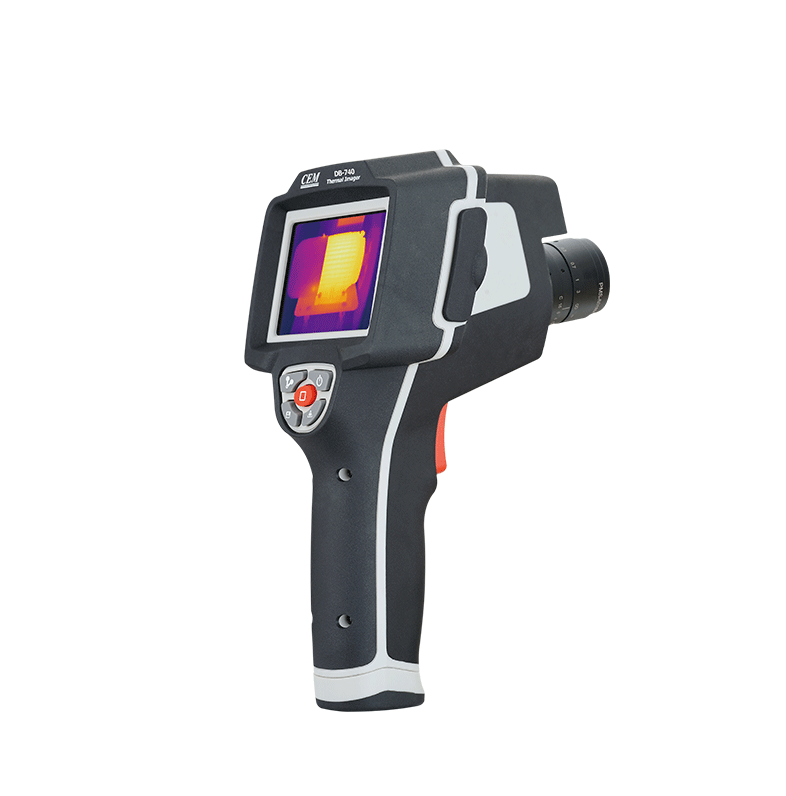

CEM DB-740 Short Wave Thermal Imager (600°C~2000°C,0.6mrad, 640×512 pixels)

Imaging and optical data

Field of view (FOV)/Minimum focus distance: 22°x 17.6°

Spatial resolution (IFOV): 0.6mrad

Thermal sensitivity/NETD: < 1°C @ +600°C

Image frequency: 30Hz

Focus: Fixed

Focal length: 25mm

Focal Plane Array (FPA)/ Spectral range: Wide Dynamic Range CMOS / 0.8–1.1 µm

IR resolution: 640 × 512 pixels

Image presentation

Display: Capacitive Touch screen, 3.5 in. LCD, 640 × 480 pixels

Image modes: IR image

Color palettes: IRON, Rainbow, Grey, GreyInverted, Sepia, Blue-Red, Hot-Cold, Humidity

Measurement

Object temperature range: 600°C to 2000°C (1112°F to +3632°F)

Accuracy: ±2°C (±3.6°F) or ±2% of reading

Measurement analysis

Spotmeter: 3

Line: 2 lines(horizontal and vertical)

Area: 3 boxes with max. /min. /average

Automatic hot /cold detection: Auto hot or cold spotmeter marks

Emissivity correction: Variable from 0.01 to 1.0

Measurement corrections: Emissivity, ambient temperature, distance, relative humidity, offset temperature

Storage of videos

Storage media: 4Gbytes Micro SD card

Video storage format: Standard MPEG-4, 640x480@30fps, on memory card >60 minutes

Video storage mode: IR/visual images; simultaneous storage of IR and visual images

Storage of images

Image storage format: Standard JPEG, including measurement data, on memory card >1000 pictures

Image storage mode: IR images

Set-up

Set-up commands: Local adaptation of units, language, date and time formats, information of camera

Languages: multinational

Data communication interfaces

Interfaces: USB-mini, audio, HDMI video, Micro SD slot

USB: Data transform between camera and PC

Video out: HDMI

Power system

Battery: lithium polymer battery, 4.5 hours operating time

Input voltage: DC 9V to 12V

Charging system: In camera (AC adapter)

Power management: Automatic shutdown and sleep mode (user selectable)

Accessories:

Lens, Battery, software, USB cable, Gift box.
