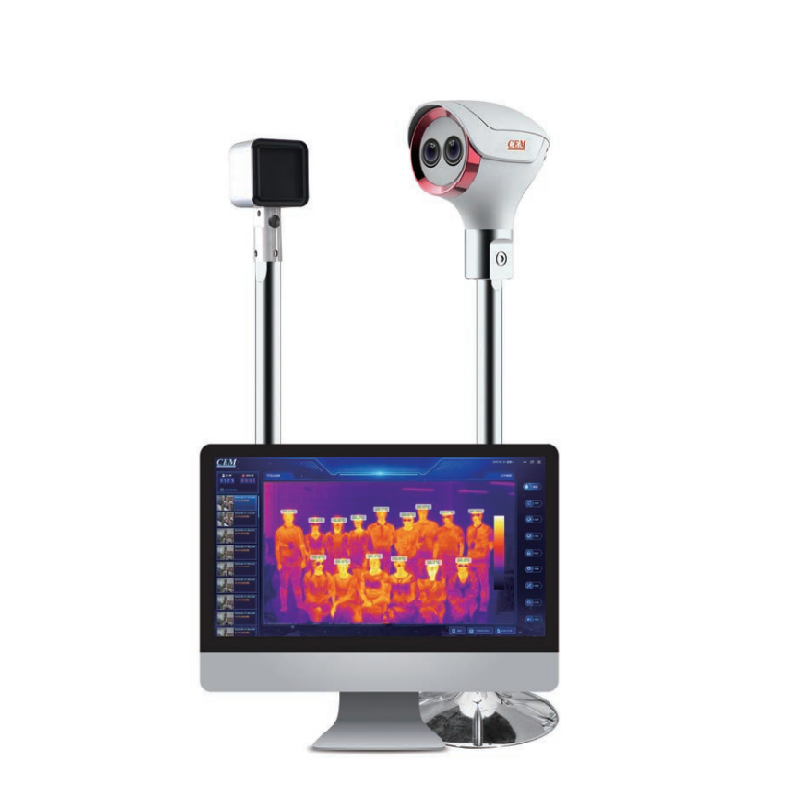

CEM AI-2031 Automatic Infrared Thermal Imaging Temperature Measurement Warning System (20-50°C,384x288)

Infrared

Resolution: 384x288

Accuracy: ±0.3°C (Blackbody source correction)

Focal length: 9mm

Angle of view: 41x31°

IFOV: 1.89mrad

Aperture: F1.0

Frame rate: 50Hz

Material of Lens: germanium

Visible light

Resolution: 2 million

Frame rate: 50Hz

Temperature measurement

Temperature measurement range: 20-50°C

Temperature measurement accuracy: ≤ ± 0.3°C (ambient temperature 16~32°C)

Softwarefunctions

Parameter settings: Warning switch and warning threshold value, number of warning targets, warning photos automatic clearing, shielding fixed high temperature objects

Face tracking: Intelligent face tracking

Real-time preview: Real-time preview of visible and thermal image

Real-time spot temperature detection: Real-time temperature monitoring at any point in the field of view

Automatic tracking: Support automatic tracking for elevated temperatures

Automatic warning: Automatic tracking, warning and photo capturing for storage when people with fevers are identifi ed Warning while the Black Body is blocked.

Historical records: Support query, classification and deletion of historical warning screenshots

Video recording: Support

Network communication protocol: HTTP, RTSP

Blackbody

Blackbody target surface uniformity: ≤0.1°ƒC

Temperature stability accuracy ≤ ± 0.2°ƒC (single point)

Camera head interface

Network interface: Two-way, visible light 1000M, infrared 100M

Temperature measurement warning system: Yes

Input voltage DC: 12V

Accessories:

Computer, 3x10m network cable, network switch, bx-35 blackbody calibration source, 2m floor stand, 43 inch TV.

Datasheet
