Operating Range (50Hz/60Hz): 100V to 1000V
Size(HxWxD)mm: 135 x 19 x 22
Weight: 45g
General specification
Auto Power Off
Low battery self test
Power ON/OFF switch
Switchable audible and silent mode
Rugged, double molded case
CATIV-1000V
Accessories: Two “AAA” batteries and clamshell
Datasheet

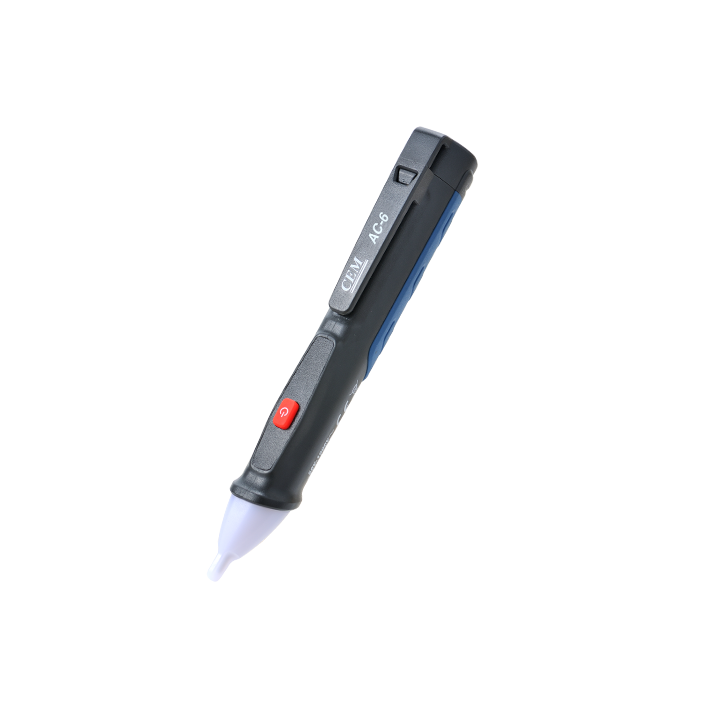

Features Easy-to-use just touch the tip to an outlet or cord. When it glows red, you know there is voltage in the line. Fit in shirt pocket for convenience All outer surfaces are non-conductive for safety Detects AC voltage without metallic contact | ||||
| AC-6 | AC-6B | AC-6S | |
ACV Non-Contact Detection | * | * | * | |
Operating Range (50Hz/60Hz) | 24V to1000V | * | ||
50V to1000V | * | |||
100V to 1000V | * | * | ||
200V to 1000V | ||||
Voltage Sensitivity detector (Single) | * | * | Dual | |
Red LED indicators | * | * | * | |
Yellow LED indicators | * | |||
Green LED indicators | * | * | * | |
Beeper sounds | * | * | * | |
Motor Shaking | ||||
Flashlight function | AC-6F | |||
Auto Power Off | * | * | * | |
Low battery self test | * | * | * | |
Power ON/OFF switch | * | * | * | |
Switchable audible and silent mode | * | * | * | |
Rugged, double molded case | * | * | * | |
CATIV-1000V | * | * | * | |
Size(H x W x D)mm | 135 x 19 x 22 | |||
Weight | 45g | |||
