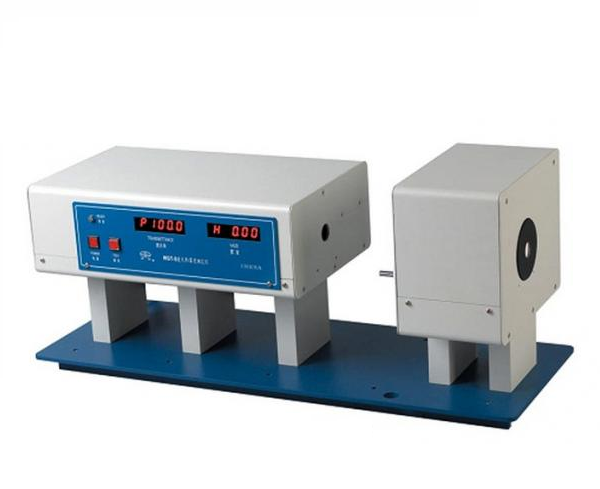

Cell Instruments WGT-S Plastics Transparency Tester Haze meter

Test Range: Luminous transmittance: 0~100.0% Haze: 0~30.00%

Accuracy: Luminous transmittance: ≤1% Haze: ≤0.5% ±0.1%; >0.5% ±0.3%

Repeatability: Luminous transmittance: 0.5% Haze: ≤0.5% ±0.05%; >0.5% ±0.1%

Specimen Size: 50 mm x 50 mm (film)

Standard Specimen: Φ40 x 2 mm (one)

Test Area: Light inlet circle: Φ 25 mm Light outlet circle: Φ 21 mm

Instrument Size: 740 mm (L) ×270 mm (W) ×300 mm (H)

Standards ASTM D1003-2007,JIS K7105-81, GB/T 2410-2008
