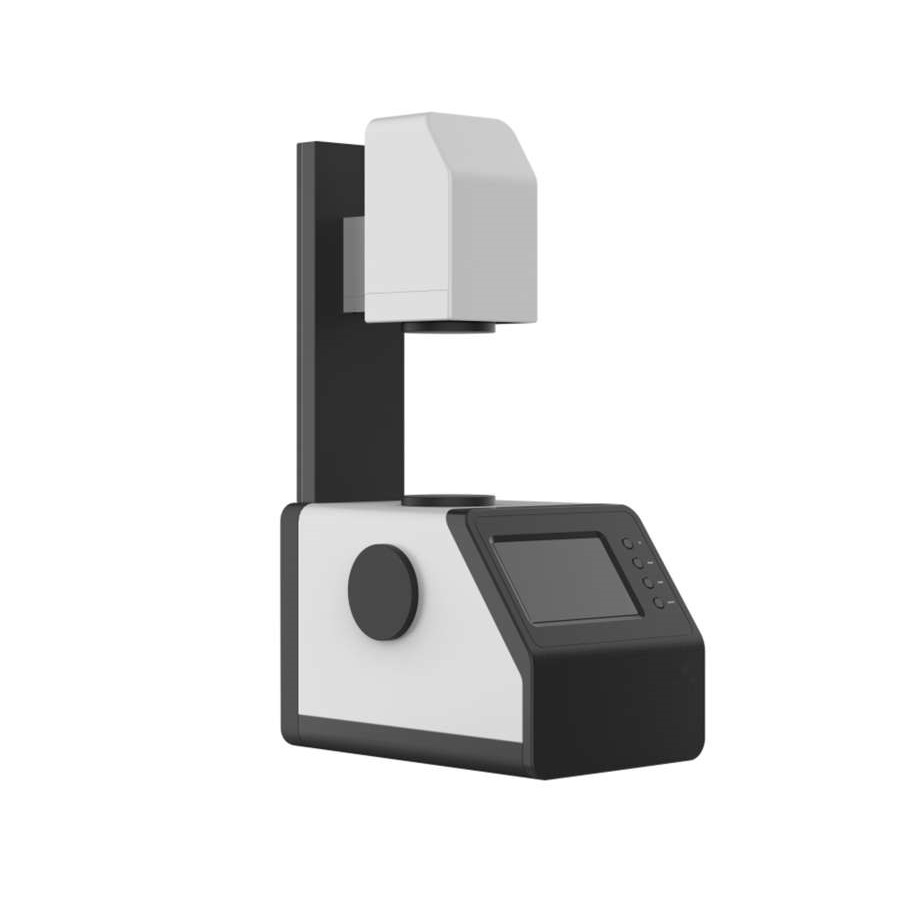

Cell Instruments TH Haze Meter

Light Source: CIE-A,CIE-C,CIE-D65

Standards: ASTM D1003/D1044,ISO13468/ISO14782, JIS K 7361/ JIS K 7136, GB/T 2410-08

Parameters: HAZE, Transmittance(T)

Spectral Response: CIE Luminosity function Y/V (λ)

Geometry: 0/d

Measurement Area/Aperture Size: 16.5mm/21mm

Measurement Range: 0-100%

Haze Resolution: 0.01

Haze Repeatability: ≤0.1

Sample Size Thickness: ≤145mm

Memory: 20000 value

Interface: USB

Power: DC24V

Working Temperature: 10-40 ℃ (+50 – 104 °F)

Storage Temperature: -20-50℃ (+32 – 122 °F)

Size (LxWxH): 310mm X 215mm X 540mm

Standard: Accessory Free PC software (Haze QC), one pcs of haze standard plate
