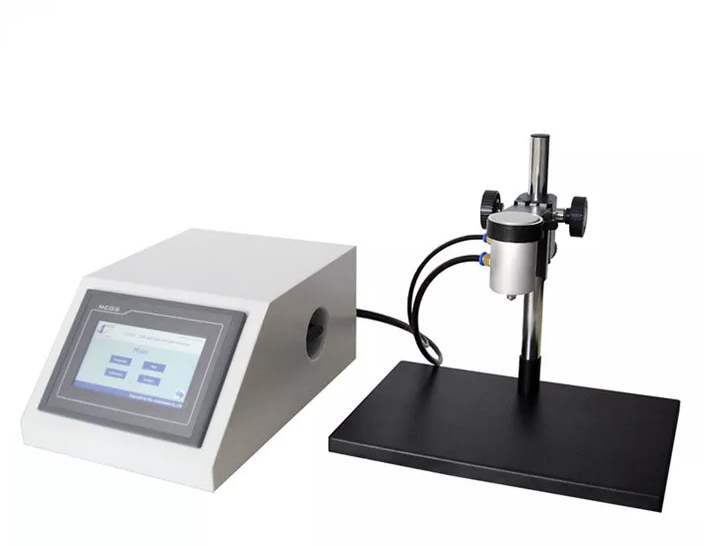

Cell Instruments LSST Internal pressurization burst tester

Pressure Range 0 ~ 600 KPa; 0 ~ 87.0 psi (Standard)

Inflating Head Φ4mm (Standard)

Open Package Width 300mm max(standard)

Gas Pressure 0.4 MPa~0.9 MPa

Port Size Φ6 mm PU hose

Dimensions 400 mm (L) × 270 mm (W) × 180 mm (H)

Pedestal Size 375 mm (L) × 275 mm (W) × 345 mm (H)

Power AC 220V 50Hz

Burst Tester Standards

ISO 11607-1, ISO 11607-2, ASTM F1140, ASTM F2054
