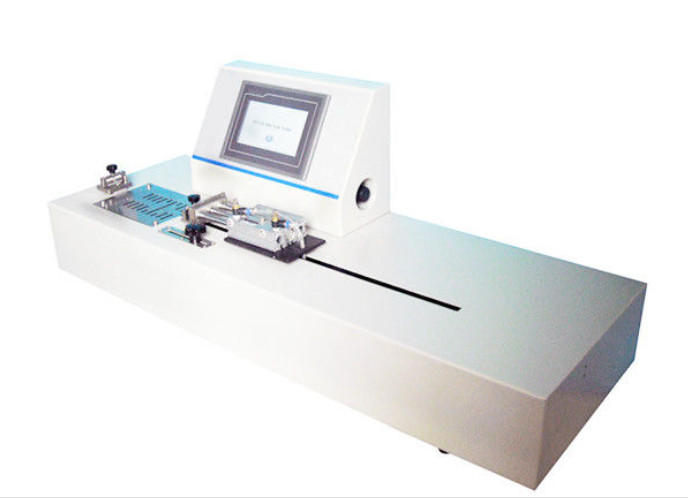

Cell Instruments HTT-01 Hot Tack Tester

Aplication: Hot Tack Tester HTT-01measures the strength of heat seals formed between thermoplastic surfaces immediately after the seal has been made and before it cools to room temperature. Hot Tack tester is especially important for vertical form-fill-seal packaging.

Sealing Temperature: Ambient~250℃

Temp Accuracy: ±0.2℃

Heat Seal Dwell Time: 0.1~9999s

Hot Tack Dwell Time: 0.1~9999s

Sealing Pressure: 0.15MPa~0.7MPa

Sealing Jaws: 50mmx10mm Teflon Coated

Sealing Jaws Heating: Double Heating

Load Cell: 200N(Optional:30N50N100N500N)

Accuracy: 0.5 F.S.

Resolution: 0.01N

Stroke: 500mm

Gas Source: 0.5MPa~0.7MPa

Port Size: Ф6mm PU Hose

Dimensions: 1100mm(L)×390mm(W)×420(H)

Power: AC220V50H
