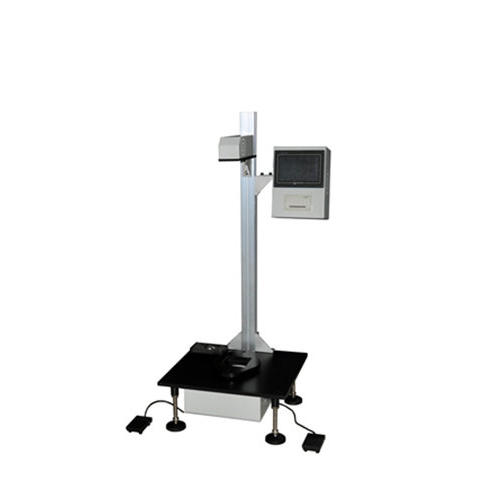

Cell Instruments FBT-01 Falling Ball Impact Tester

Aplication:Falling ball impact tester measures the resistance performance of plates, sheets, and composites, films foils, paper etc. with less than 2mm thickness. By impact test, the material ability to resist external destruction can be indicated.

Impact Height: 300mm-600mm (customization available)

Accuracy: 0.1g (0.1J)

Steel Ball Diameter: 23mm, 25mm, 28.6mm, 38.1mm, 50.8mm

Specimen Clamp: Pneumatic Clamp

Gas Supply: 0.6 MPa

Gas Port Size: Φ8 mm PU Tubing

Specimen Size: >150 mm x 150 mm

Power Supply: AC 220V 50Hz

Dimension: 480 mm (L) × 470 mm (W) × 1170 mm (H)

Net Weight: 70 kg
