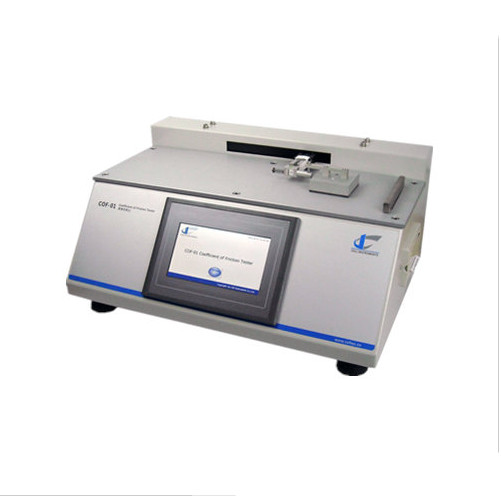

Cell Instruments COF-01 Coefficient of Friction Tester (5N/± 0,02 N)

Aplication: Tester COF-01 is for the determination of static and kinetic coefficients of friction of plastic films, sheets, rubber, paper and paper board, PP woven bags, fabrics, metal-plastic composite belts for communication cables, convey belts, wood, coatings, brake pads, windshield wipers, shoe materials and tires. By measuring the smoothness of a product, the fastest running speed of packaging line can be realized.

Load Cell: 5N

Accuracy: ±0.02 N

Stroke: Max 150mm

Sled: 200 g (Customization for other weight)

Test Speed: 100mm/min (ISO), 150mm/min(ASTM)

Power: AC 220V 50Hz ( can be changed to local requirement)

Dimensions: 400mm(L)*300mm(W)*180mm(H)
